Backup Lamp: Service and Repair

INBOARD LIGHT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

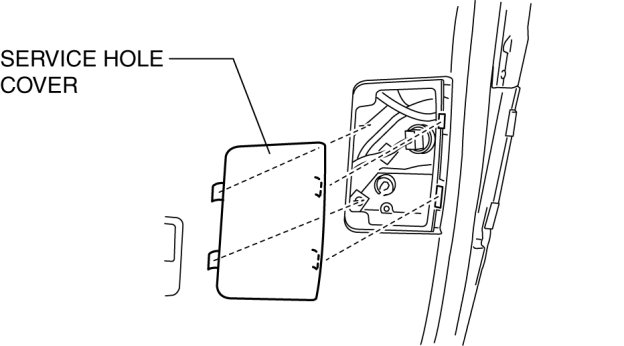

2. Remove the service hole cover.

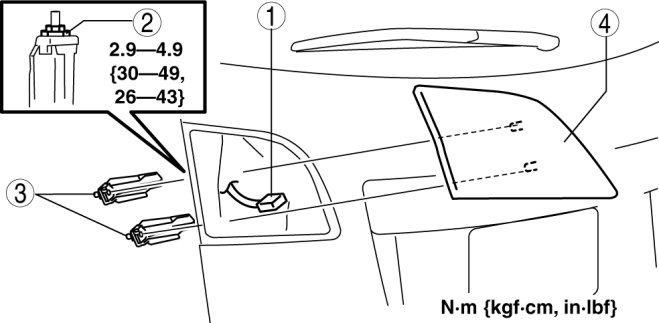

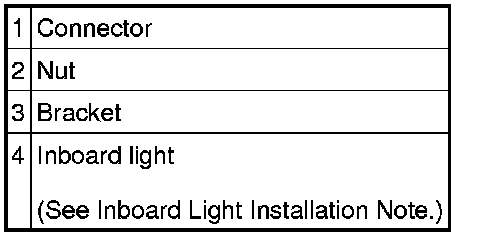

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

Inboard Light Installation Note

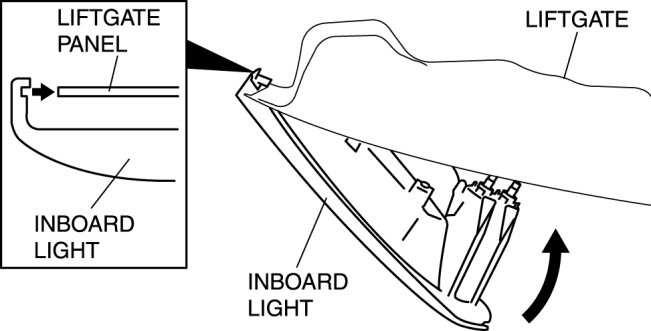

1. Insert the inboard light into the liftgate as shown in the figure, pivot it inward and then fix in place.

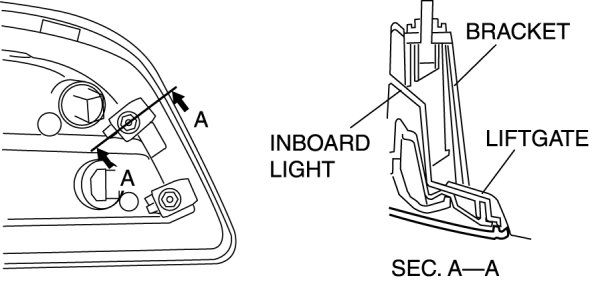

2. Push the bracket onto the liftgate as shown in the figure and install.
