Fog/Driving Lamp: Service and Repair

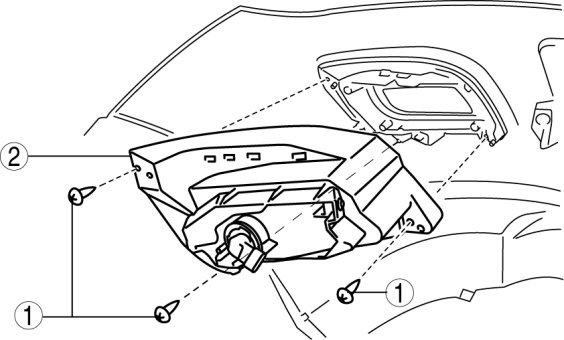

FRONT FOG LIGHT REMOVAL/INSTALLATION 1.
Disconnect the negative battery cable.
2.
Remove the front under cover B.
Front Under Cover Removal/Installation 3.
Remove in the order indicated in the table.
4.
Install in the reverse order of removal.
5.
Adjust the front fog light aiming.
Adjustments
