Headlamp Alignment Switch: Service and Repair
HEADLIGHT LEVELING SWITCH REMOVAL/INSTALLATION 1.
Disconnect the negative battery cable.
2.
Remove the dashboard under cover. (Driver side)
Dashboard Under Cover Removal/Installation 3.
Remove the hood release lever.
Service and Repair 4.

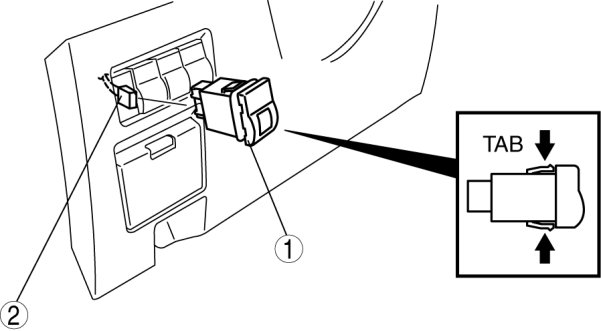

Remove in the order indicated in the table.
5.
Install in the reverse order of removal.
