Front Map Light Removal/Installation

FRONT MAP LIGHT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

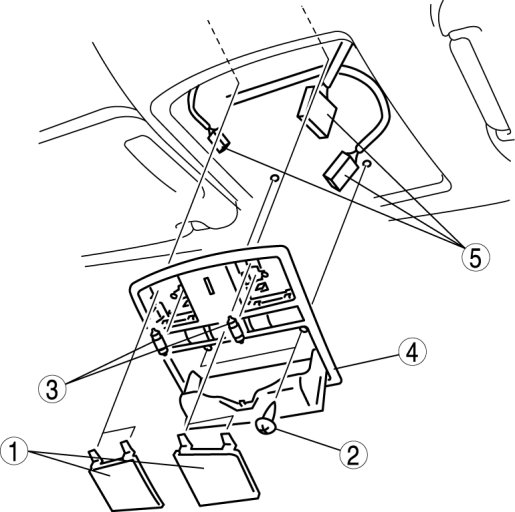

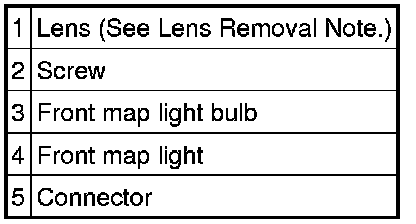

2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

Lens Removal Note

1. Insert a tape-wrapped flathead screwdriver into the service hole and pry with the screwdriver in the direction shown by the arrow to remove the lens.
