Map Light: Testing and Inspection

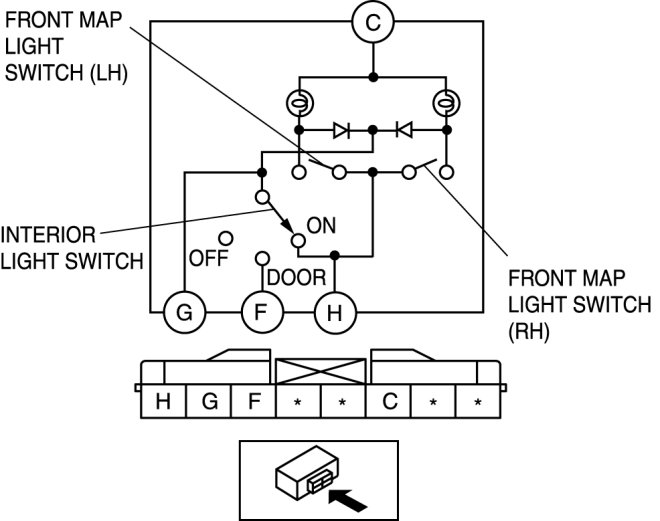

FRONT MAP LIGHT INSPECTION

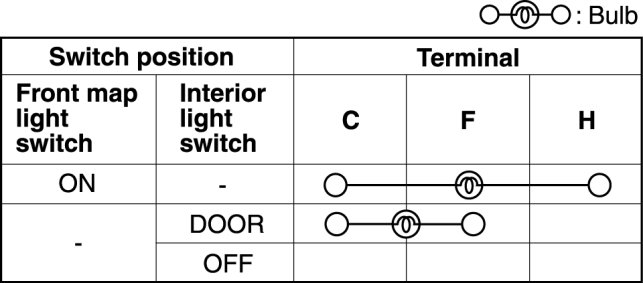

1. Verify that the continuity between the front map light terminals is as indicated in the table.

- If not as indicated in the table, replace the front map light.
