Overhaul

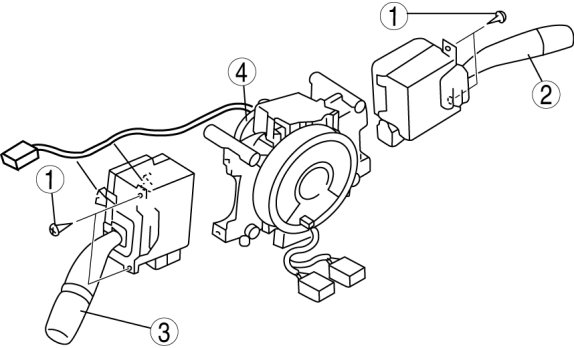

COMBINATION SWITCH DISASSEMBLY/ASSEMBLY

CAUTION:
- If the disc on the combination switch is deformed or has foreign material adhering to it, performance of the steering angle sensor may be reduced, causing abnormal operation. When handling the combination switch, be careful not to deform the disc and make sure there is no foreign material on it.

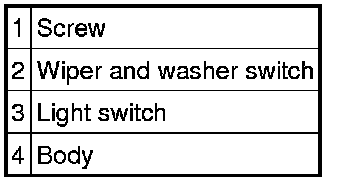

1. Disassemble in the order indicated in the table.

2. Assemble in the reverse order of disassembly.
