Removal and Replacement




COMBINATION SWITCH REMOVAL/INSTALLATION

WARNING:
- If the negative battery cable or the steering angle sensor connector is disconnected, the stored initial position of the steering angle sensor will be cleared and the DSC will not operate properly, making the vehicle unsafe to drive. Perform the steering angle sensor initialization procedure after connecting the negative battery cable.

1. Turn the ignition switch to the LOCK position.

2. Disconnect the negative battery cable and wait for 1 min or more.

3. Remove the following parts:
a. Driver-side air bag module Two-Step Deployment Control System Standard Deployment Control System

b. Steering wheel Service and Repair

c. Lower column cover Service and Repair

4. Put aside the upper column cover.

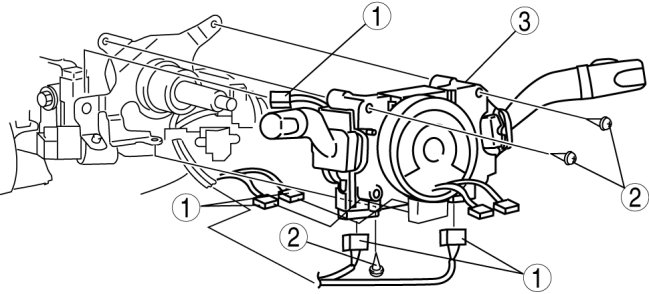

5. Remove in the order indicated in the table.










6. Disconnect the steering angle sensor connector.

7. Install in the reverse order of removal.
