Vanity Lamp: Testing and Inspection
VANITY MIRROR ILLUMINATION INSPECTION 1.
Remove the sunvisor.
Service and Repair 2.

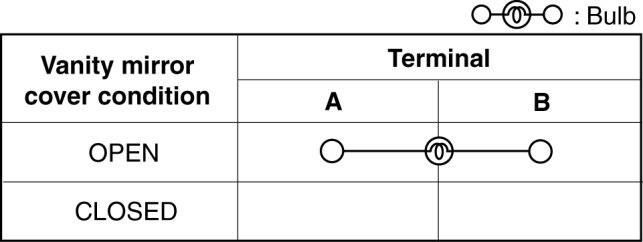

Verify that the continuity between the vanity mirror illumination terminals is as indicated in the table.
-
If not as indicated in the table, inspect the bulb. If there is no malfunction, replace the sunvisor.
