Accessory Socket Removal/Installation

ACCESSORY SOCKET REMOVAL/INSTALLATION

Front

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Decoration panel Decoration Panel Removal/Installation

b. Front console box mat Front Console Box Mat Removal/Installation

c. Indicator panel Indicator Panel Removal/Installation

d. Front console box Front Console Box Removal/Installation

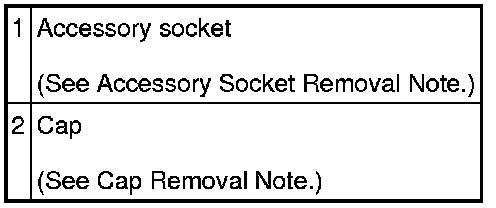

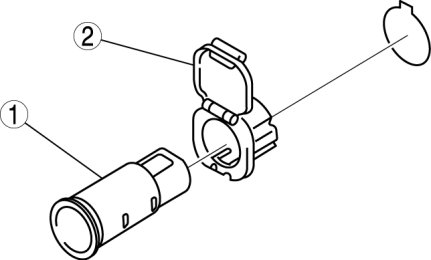

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.

Center

1. Disconnect the negative battery cable.

2. Remove the console panel. Console Panel Removal/Installation

3. Remove the console. Console Removal/Installation

4. Remove in the order indicated in the table.










5. Install in the reverse order of removal.

Rear

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Trunk box

b. Seat side box Seat Side Box Removal/Installation

c. Trunk end trim Trunk End Trim Removal/Installation

d. Third-row seat Rear - Third-Row Seat Removal/Installation

e. Rear scuff plate inner (RH) Rear Scuff Plate Removal/Installation

f. Third-row seat belt lower anchor installation bolt (RH) Third-Row Seat Belt Removal/Installation

g. Trunk side trim (Passenger side)

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.

Accessory Socket Removal Note

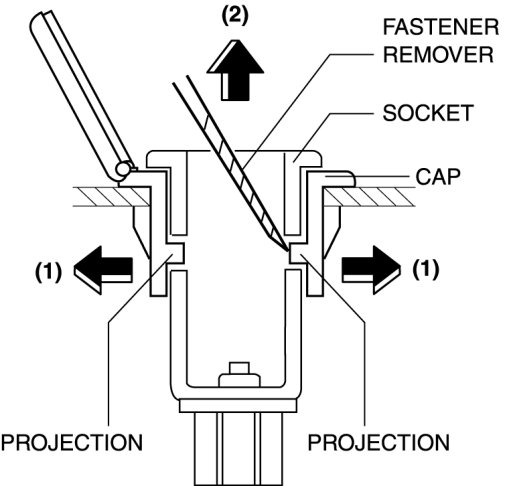

1. Remove the socket in the direction of the arrow (2) shown in the figure while opening the caps in the direction of the arrow (1) using a tape-wrapped fastener remover.






Cap Removal Note

1. Remove the cap in the direction of the arrow (2) shown in the figure while pressing the cap tabs in the direction of the arrow (1).
