Power Supply Socket Removal/Installation
POWER SUPPLY SOCKET REMOVAL/INSTALLATION 1.
Disconnect the negative
battery cable.
2.
Remove auxiliary terminal unit panel. (See )
3.

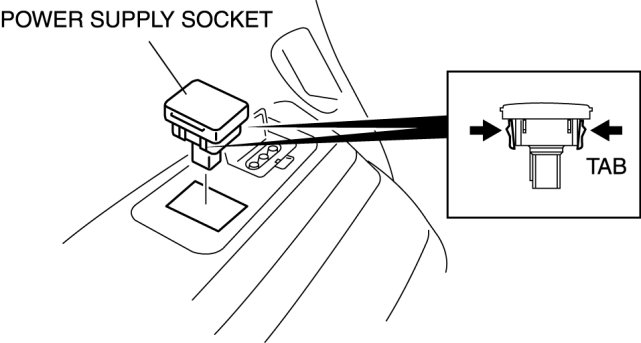

Press the tabs, pull the power supply socket outward, and then remove it.
4.
Install in the reverse order of removal.
