Auxiliary Power Outlet: Testing and Inspection

ACCESSORY SOCKET INSPECTION

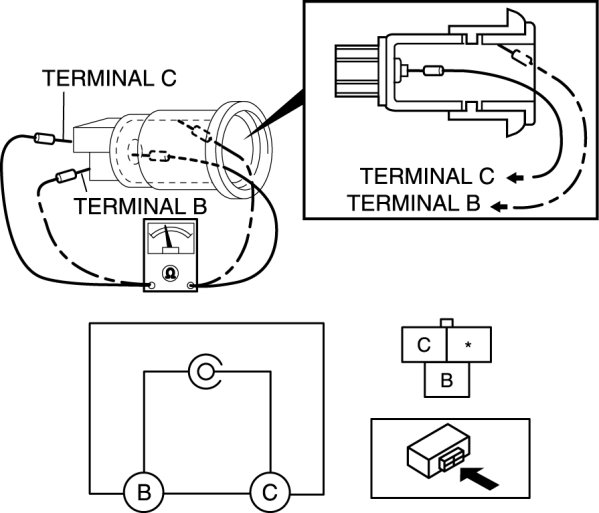

1. Connect a tester as shown in the figure and verify that there is continuity.

- If the continuity cannot be verified, replace the accessory socket.
