Fuse: Service and Repair

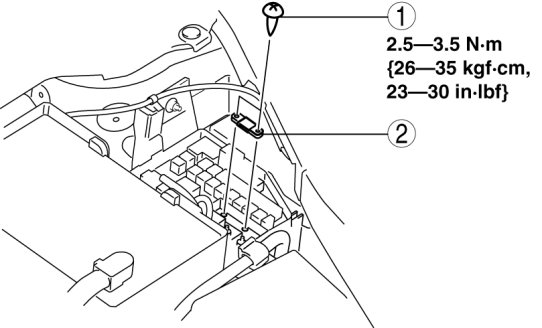

MAIN FUSE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the main fuse block cover.

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.
