Diagnostic Monitoring Test Results

DIAGNOSTIC MONITORING TEST RESULTS [MZI-3.7]

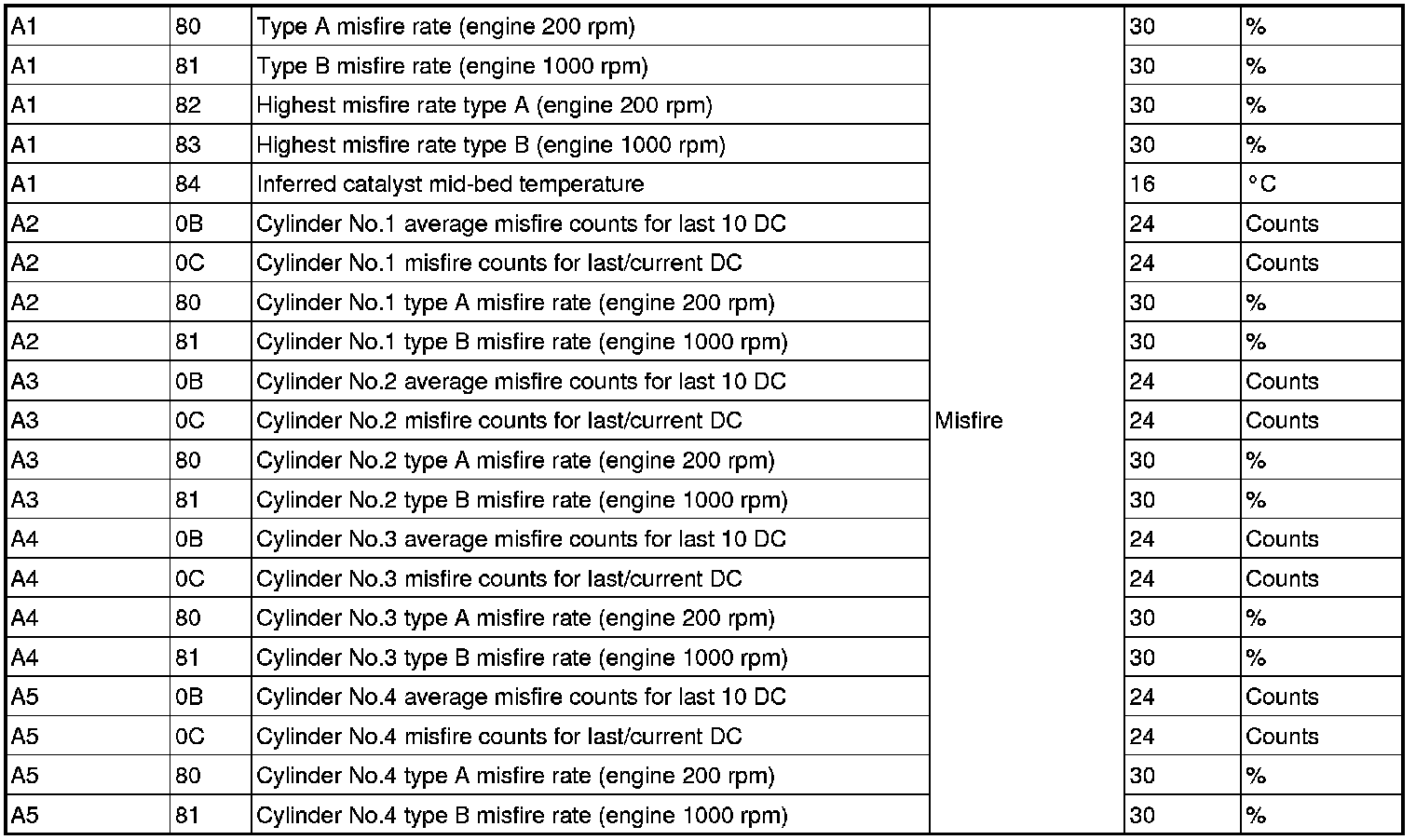

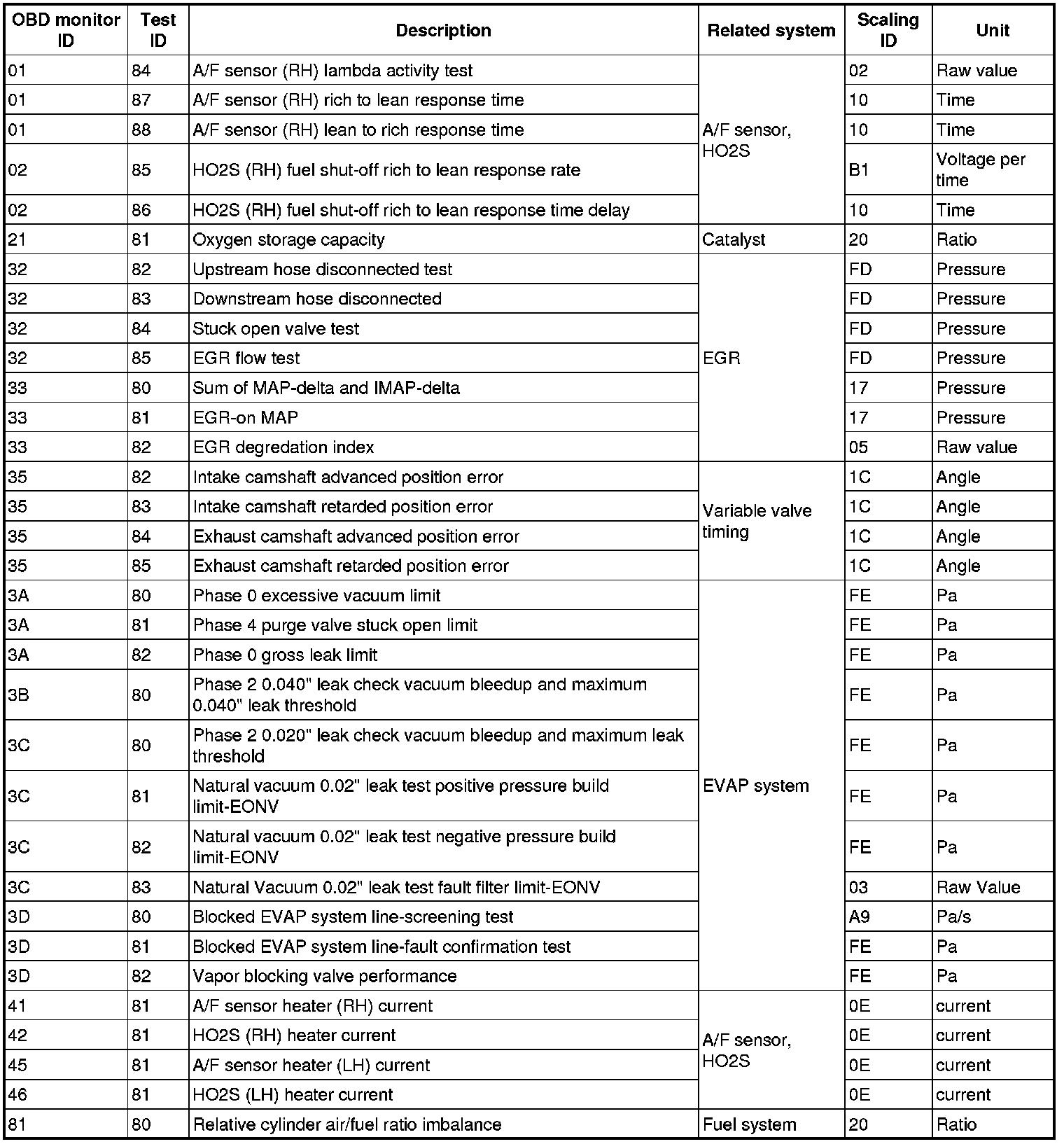

- The purpose of this test mode is to confirm the result of OBD-II monitor diagnostic test results. The result values stored when particular monitor is completed are displayed.If the monitor is not completed, initial value is displayed.
