Ignition Coil: Service and Repair

IGNITION COIL REMOVAL/INSTALLATION [MZI-3.7]

1. Disconnect the negative battery cable.

2. Remove the engine cover. Service and Repair

3. Remove the dynamic chamber. Service and Repair

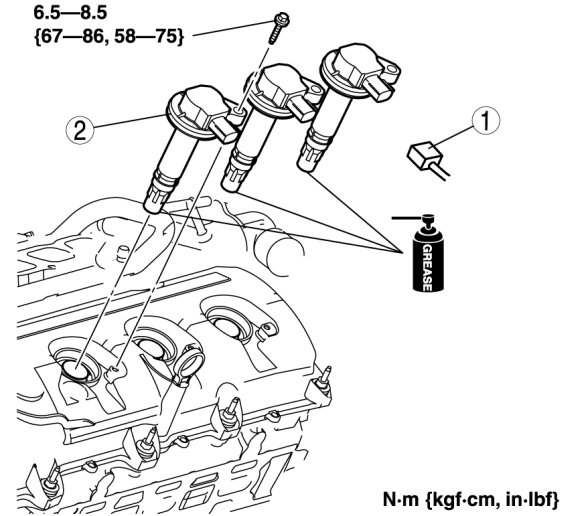

4. Remove in the order indicated in the table.

CAUTION:
- Apply small amount of the specified dielectric grease to the inside of the ignition coils, then install the ignition coils to the spark plugs.

- Specified grease: Motorcraft XG-3A

5. Install in the reverse order of removal.
