Engine Control Module: Service and Repair

PCM REMOVAL/INSTALLATION [MZI-3.7]

NOTE:
- For replace the PCM, setup the M-MDS and perform the PCM configuration. Programming and Relearning

1. Disconnect the negative battery cable. Removal and Replacement

2. Remove the battery and battery tray. Removal and Replacement

3. Disconnect the PCM connectors.

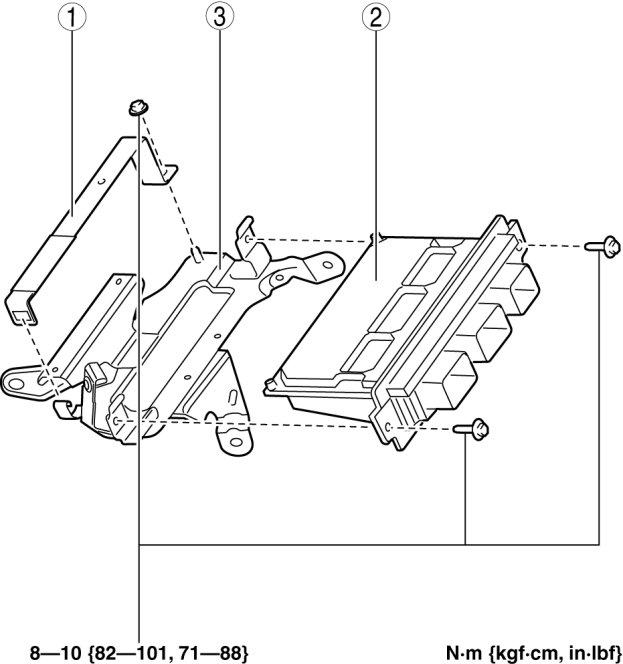

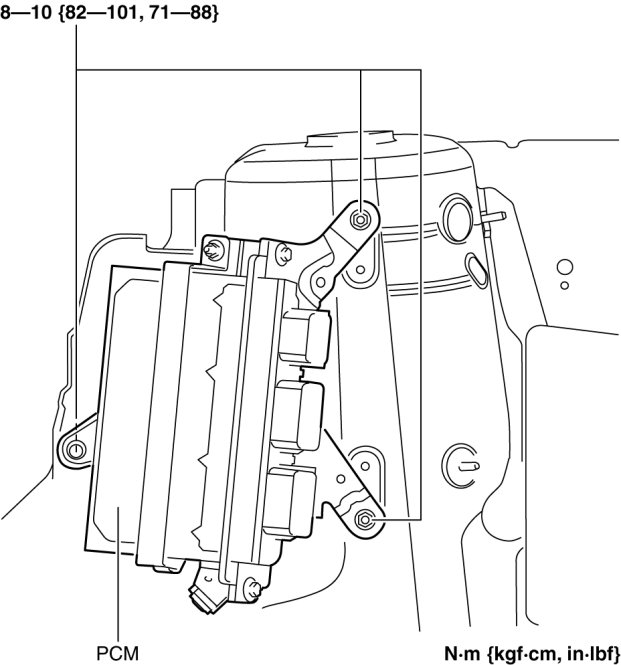

4. Remove the PCM and bracket as assembly.






5. Remove in the order indicated in the table.










6. Install in the reverse order of removal.

7. When replacing the PCM on the vehicles, perform the PCM parameter reset. Keyless Entry System Advanced Keyless Entry and Start System
