Seat Occupant Classification Module - Air Bag: Service and Repair




SEAT WEIGHT SENSOR CONTROL MODULE REMOVAL/INSTALLATION

CAUTION:
- When the seat weight sensor control module is replaced with a new one, perform the seat weight sensor calibration using the M-MDS. Programming and Relearning

1. Turn the ignition switch to the LOCK position.

2. Disconnect the negative battery cable and wait for 1 min or more.

3. Remove the front passenger seat. Front Seat Removal/Installation

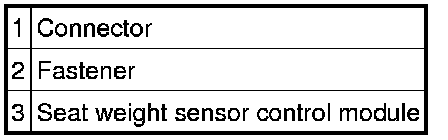

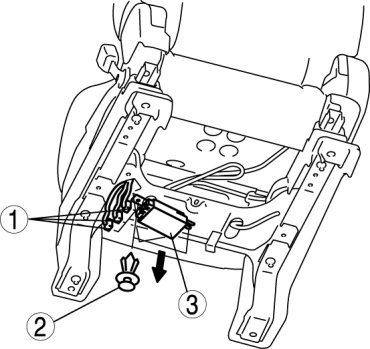

4. Remove in the order indicated in the table.










5. Install in the reverse order of removal.
