Two-Step Deployment Control System

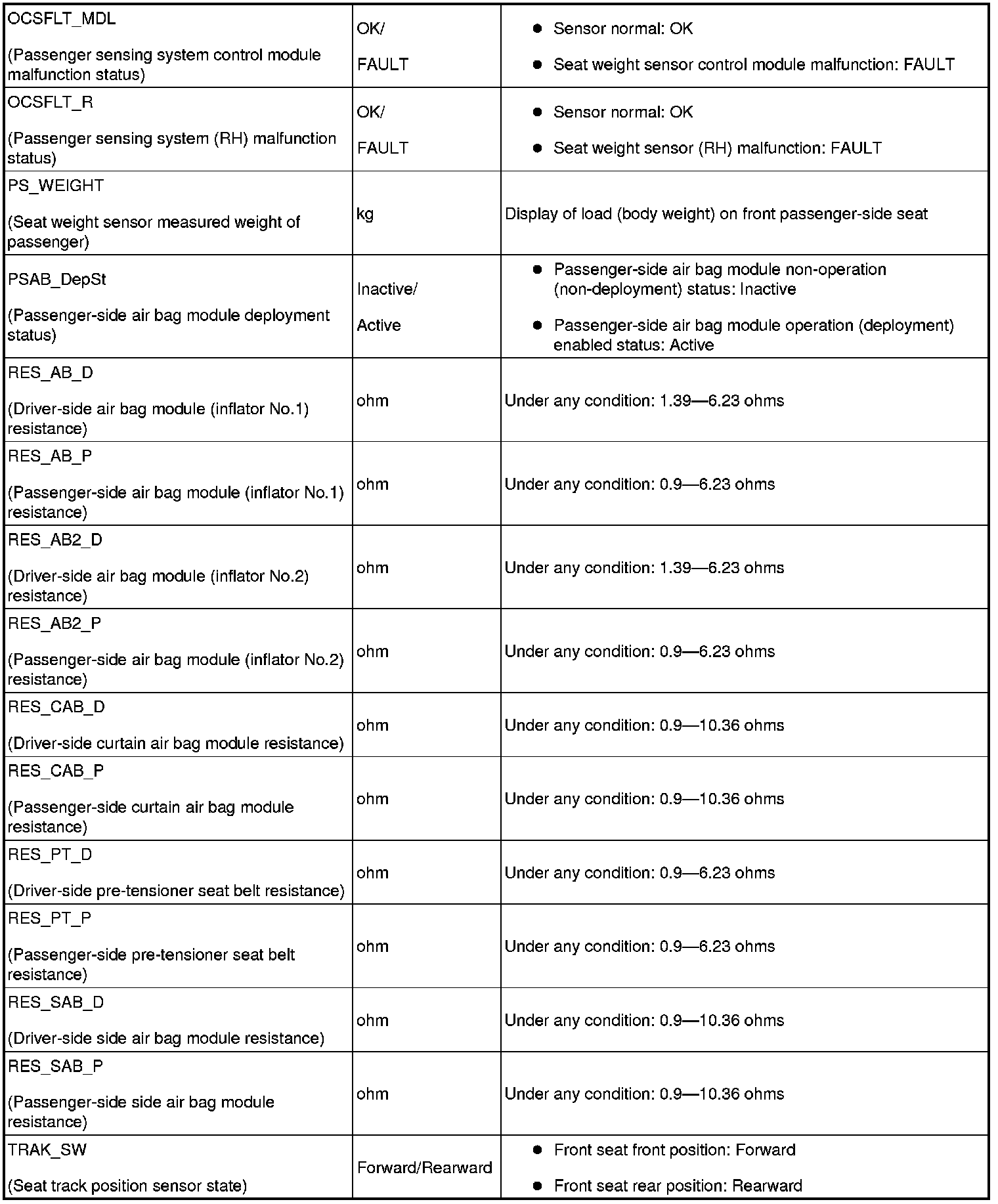

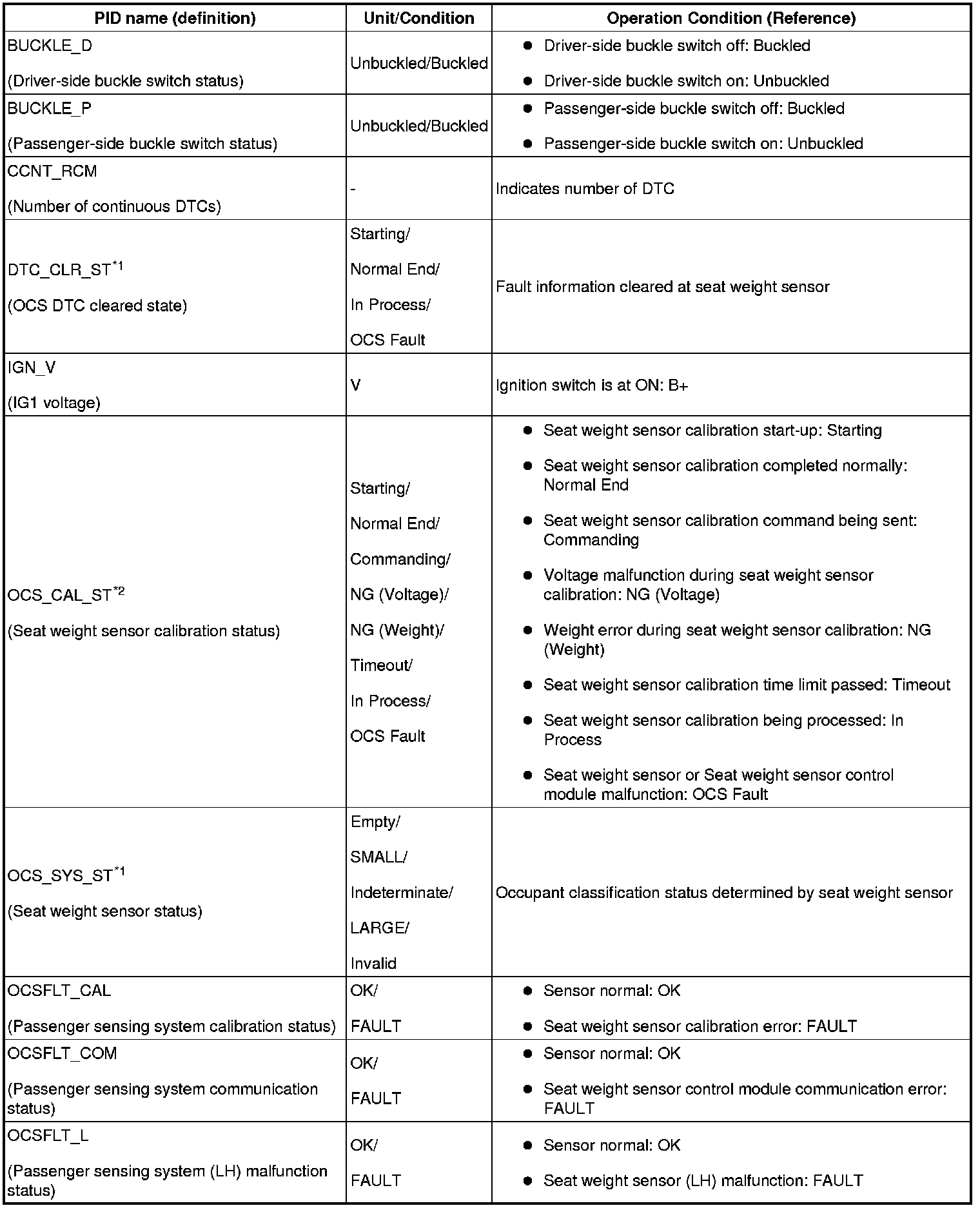

PID/DATA MONITOR TABLE [TWO-STEP DEPLOYMENT CONTROL SYSTEM]

*1
Used during seat weight sensor calibration setting. Not necessary for diagnostic.

*2
When the calibration error is displayed, the error can be cleared by turning the ignition switch to the LOCK position.
