Fluid Pan, A/T

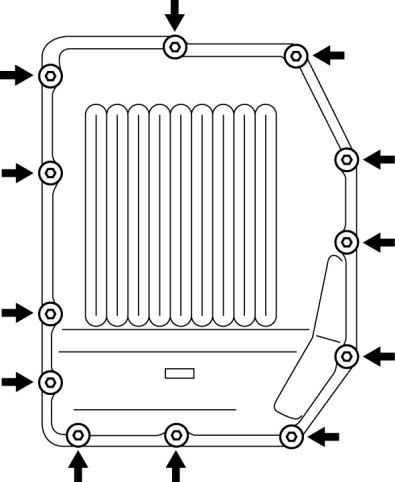

Control Valve Body Cover
CAUTION:
- Be careful that the coupler component will not become caught between the control valve body cover and transaxle case.
Tightening torque
- 10-15 Nm {102-152 kgf-cm, 89-132 in-lbf}
CAUTION:
- Be careful that the coupler component will not become caught between the control valve body cover and transaxle case.
Tightening torque
- 10-15 Nm {102-152 kgf-cm, 89-132 in-lbf}
