Cylinder Head Assembly

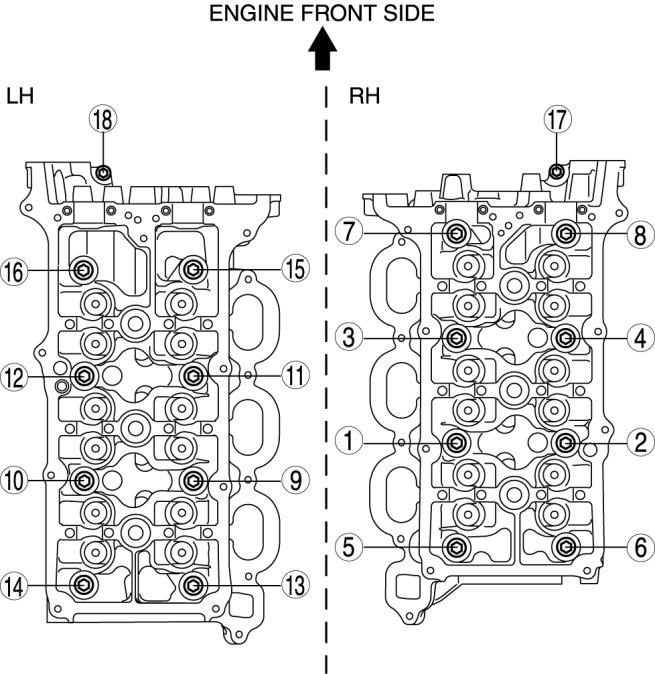

CYLINDER HEAD

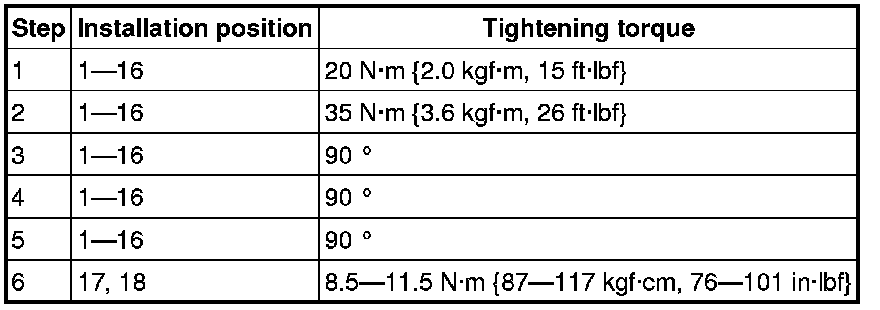

Tighten the cylinder head bolts in the order in 6 steps in the order shown in the figure.










BOLT RE-USABILITY

NOTE: The cylinder head bolts must be replaced with new bolts. The bolts are torque-to-yield designed and cannot be reused.

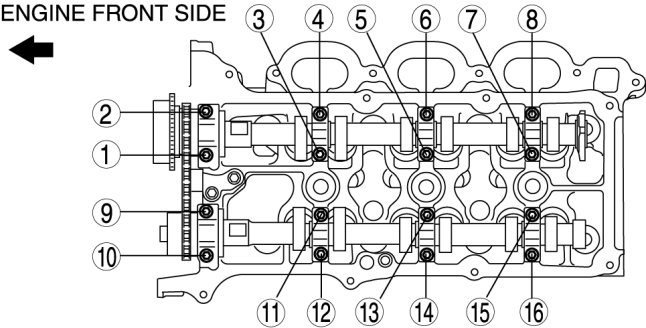

CAMSHAFT CAP

RH
Temporarily tighten the camshaft cap bolts evenly in the order shown in several passes.






Tightening torque 8.5-11.5 Nm {87-117 kgf-cm, 76-101 in-lbf}

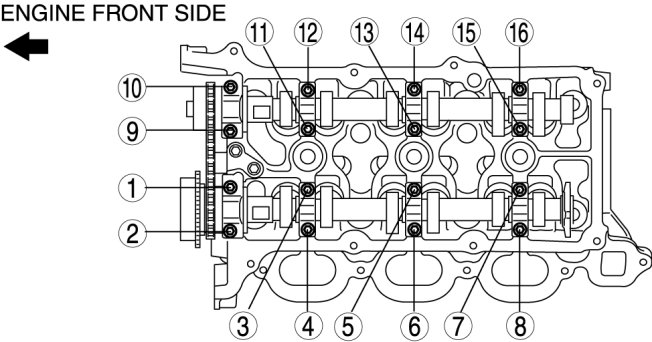

LH
Temporarily tighten the camshaft cap bolts evenly in the order shown in several passes.






Tightening torque 8.5-11.5 Nm {87-117 kgf-cm, 76-101 in-lbf}
