Water Pump

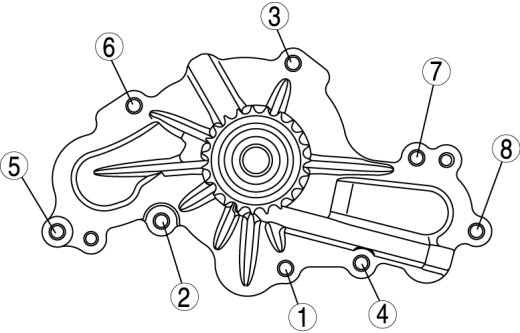

Tighten the water pump bolts in the order shown in the figure.






Tightening torque 8.5-11.5 Nm {87-117 kgf-cm, 76-101 in-lbf}
