Power Window Subswitch Removal/Installation




POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION

Passenger Side

1. Disconnect the negative battery cable.

2. Remove the inner garnish. Inner Garnish Removal/Installation

3. Remove the front door trim. Front Door Trim Removal/Installation

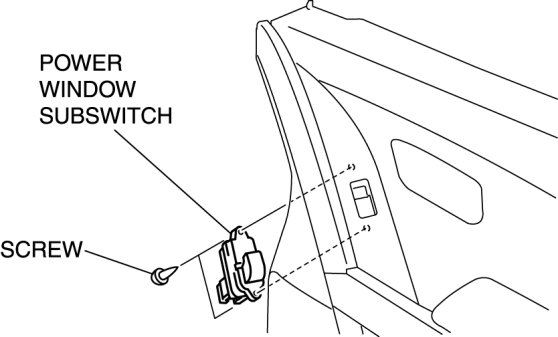

4. Remove the screw, and remove the power window subswitch from inside the front door trim.






5. Install in the reverse order of removal.

Rear Side

1. Disconnect the negative battery cable.

2. Remove the inner sail garnish. Inner Sail Garnish Removal/Installation

3. Remove the rear door trim. Rear Door Trim Removal/Installation

4. Remove the screw, and remove the power window subswitch from inside the front door trim.






5. Install in the reverse order of removal.
