Front Door Window Glass: Service and Repair




FRONT DOOR GLASS REMOVAL/INSTALLATION

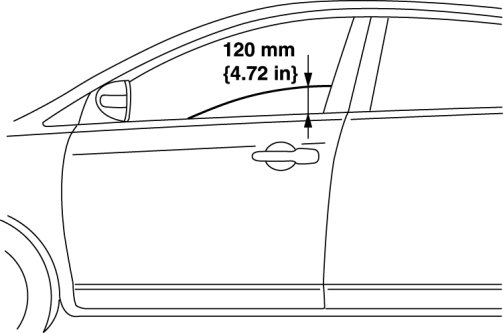

1. Adjust the door glass position as shown in the figure.






2. Disconnect the negative battery cable.

3. Remove the inner garnish. Inner Garnish Removal/Installation

4. Remove the front door trim. Front Door Trim Removal/Installation

5. Remove the front door speaker. Front Door Speaker Removal/Installation

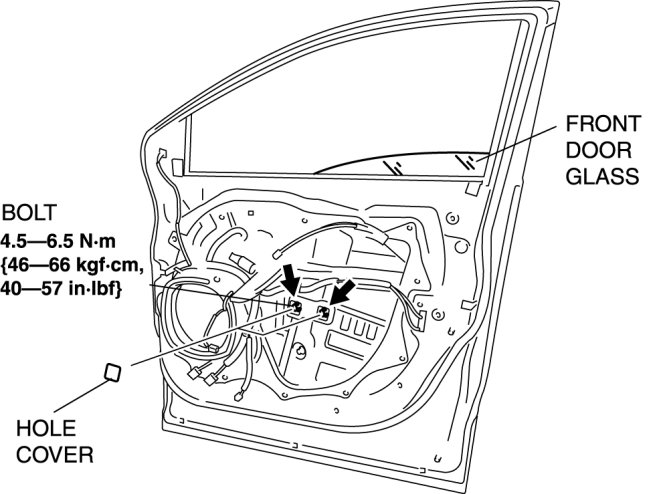

6. Remove the hole cover.






7. Remove the bolts.

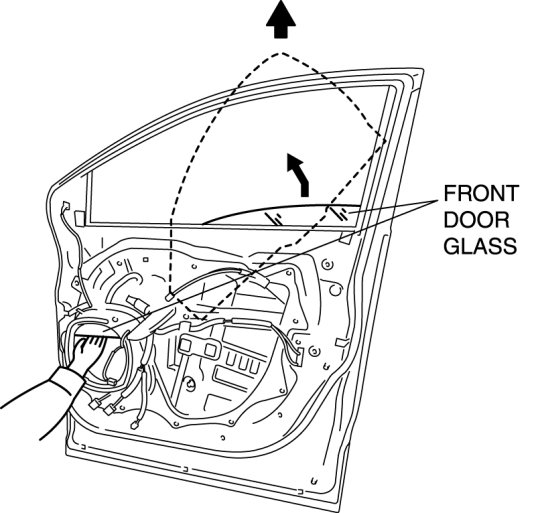

8. Lift the front door glass up and remove it in the direction of the arrow.






9. Install in the reverse order of removal.
NOTE:
- When installing the front door glass, align the glass edge with the glass run channel by hand through the speaker installation hole.
