Rear Door Window Glass: Service and Repair




REAR DOOR GLASS REMOVAL/INSTALLATION

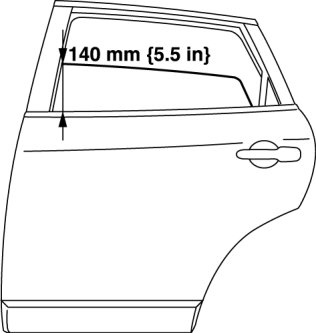

1. Adjust the door glass position as shown in the figure.






2. Disconnect the negative battery cable.

3. Remove the inner sail garnish. Inner Sail Garnish Removal/Installation

4. Remove the rear door garnish.

5. Remove the rear door trim. Rear Door Trim Removal/Installation

6. Remove the rear door speaker. Rear Door Speaker Removal/Installation

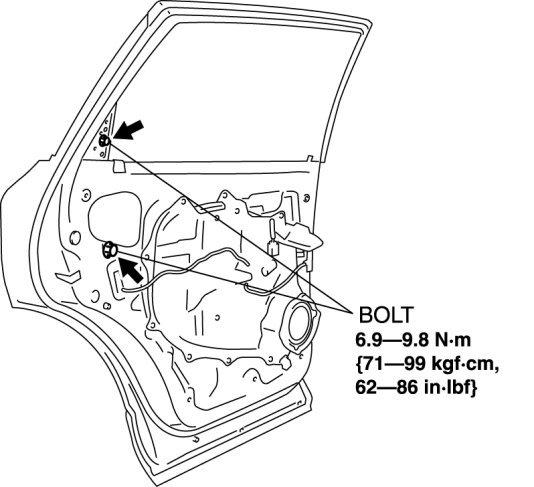

7. Remove the bolts.

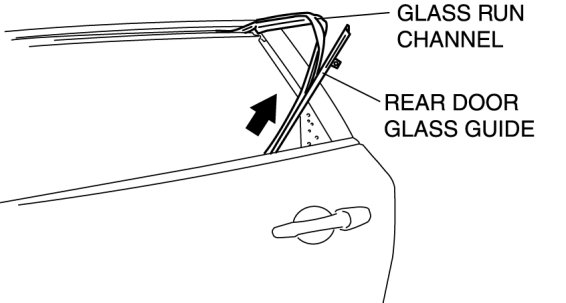

8. Remove the rear door glass guide and glass run channel as a single unit.

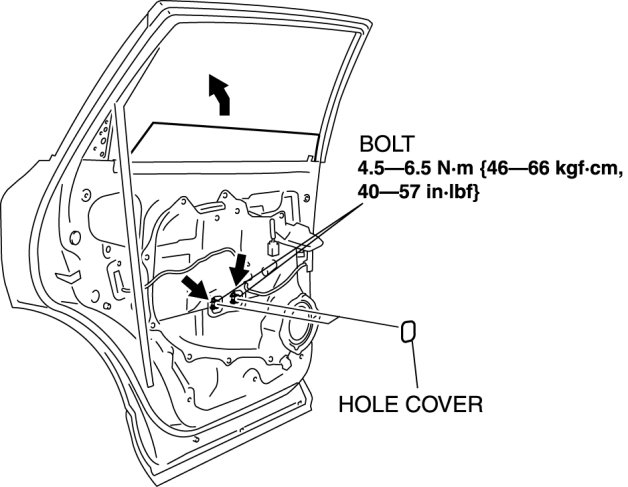

9. Remove the hole cover.






10. Remove the bolt.

11. Lift the rear door glass up and remove it in the direction of the arrow.

12. Install in the reverse order of removal.

NOTE:
- When installing the rear door glass, align the glass edge with the glass run channel by hand through the speaker installation hole.
