Washer Fluid Level Switch: Service and Repair

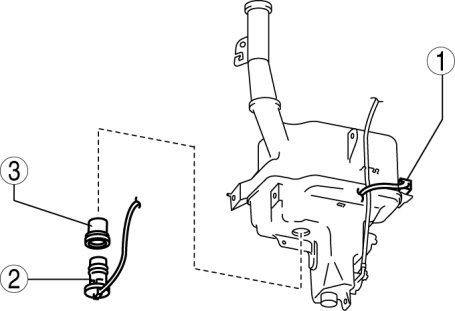

WASHER FLUID-LEVEL SENSOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the front bumper. Removal and Replacement

3. Remove the washer tank. Service and Repair

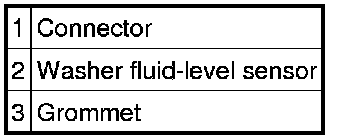

4. Remove in the order indicated in the table.

5. Install in the reverse order of removal.
