Windshield Washer Hose Removal/Installation




WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the splash shield (RH). Service and Repair

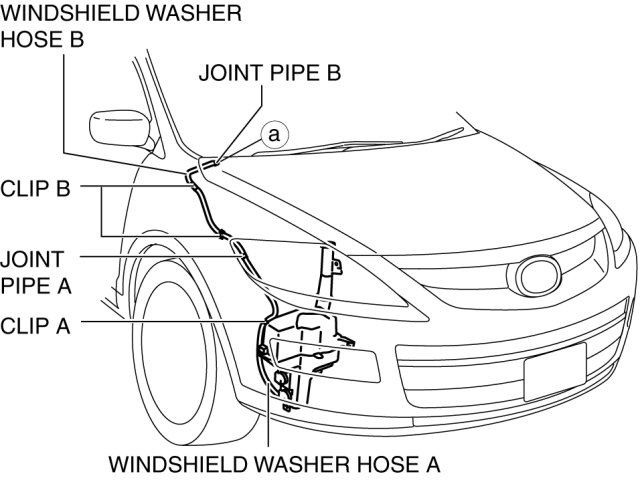

3. Disconnect windshield washer hose A from the windshield washer motor.






4. Remove windshield washer hose A from clip A.

5. Disconnect joint pipe A and remove windshield washer hose A.

6. Detach clips B.

7. Disconnect joint pipe A and B and remove windshield washer hose B.

8. Remove the windshield wiper arm and blade. Windshield Wiper Arm And Blade Removal/Installation

9. Remove the cowl grille. Cowl Grille Removal/Installation

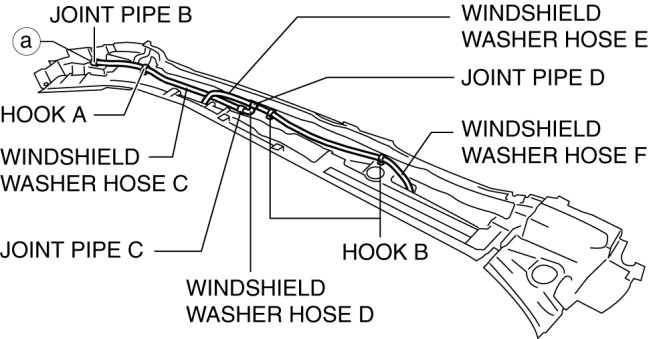

10. Remove windshield washer hose C from hook A.






11. Disconnect joint pipe B and C, than remove windshield washer hose C.

12. Disconnect joint pipe C and remove windshield washer hose D.

13. Disconnect windshield washer hose E from the windshield washer nozzle.

14. Disconnect joint pipe D and remove windshield washer hose E.

15. Remove the windshield washer hose F from the hooks B.

16. Disconnect windshield washer hose F from the windshield washer nozzle.

17. Disconnect joint pipe D and remove windshield washer hose F.

18. Install in the reverse order of removal.
