Windshield Washer Motor Inspection

WINDSHIELD WASHER MOTOR INSPECTION

1. Disconnect the negative battery cable.

2. Partially peel back the splash shield (RH).

3. Disconnect the windshield washer motor connector.

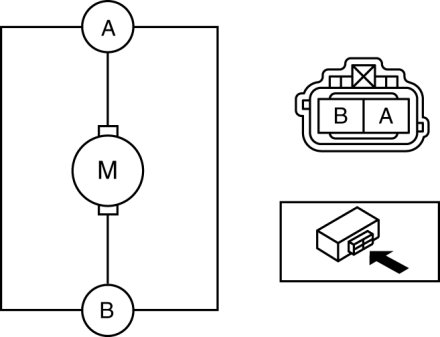

4. Connect battery positive voltage to windshield washer motor terminal A and terminal B to ground.

5. Verify that the windshield washer motor operates normally.

- If there is any malfunction, replace the windshield washer motor. Windshield Washer Motor Removal/Installation
