Windshield Washer Switch: Testing and Inspection

WINDSHIELD WIPER AND WASHER SWITCH INSPECTION

1. Disconnect the negative battery cable.

2. Remove the lower column cover. Service and Repair

3. Put aside the upper column cover.

4. Remove the wiper and washer switch. Service and Repair

5. Verify that the continuity between the windshield wiper and washer switch is as indicated in the table.

- If not as indicated in the table, replace the wiper and washer switch. Service and Repair

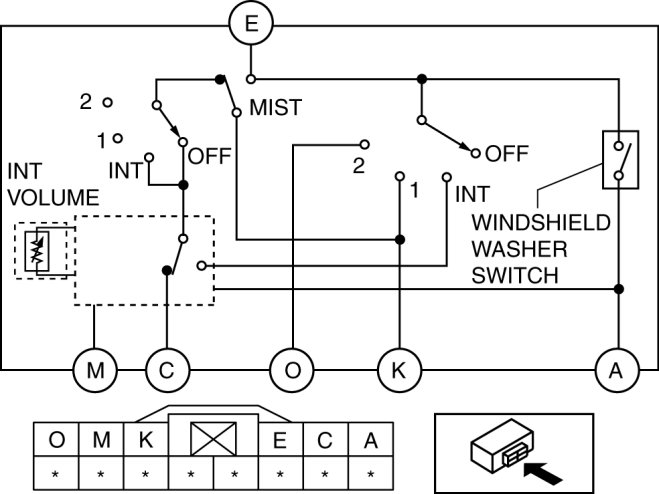

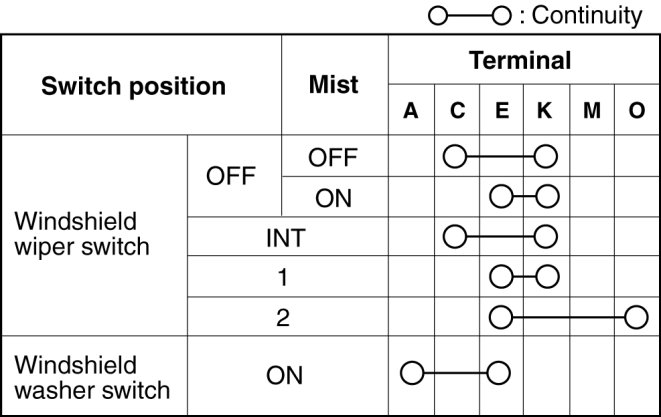

Vehicles Without Auto Wiper System

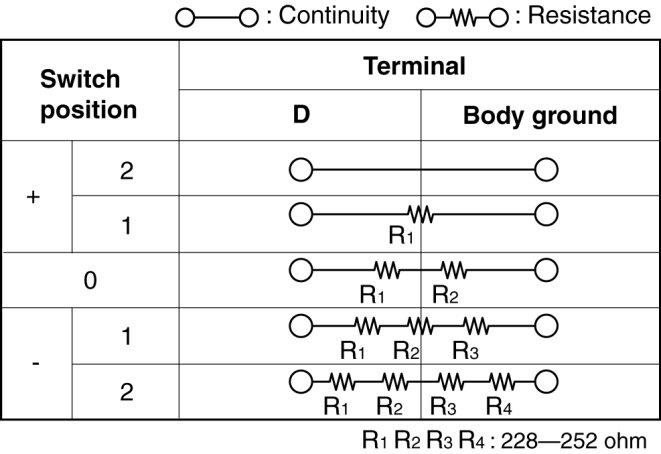

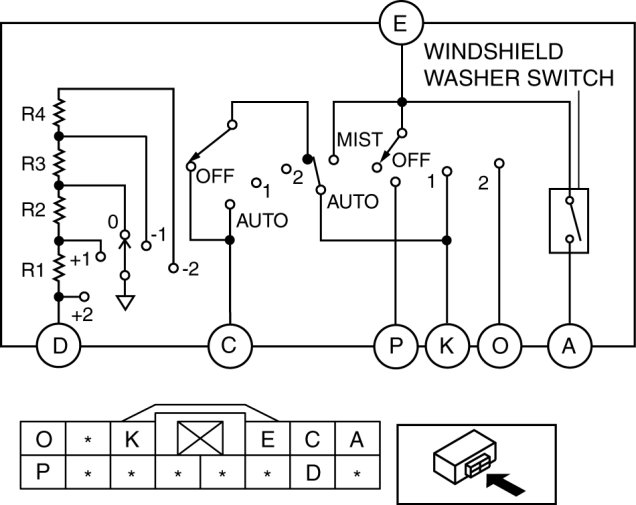

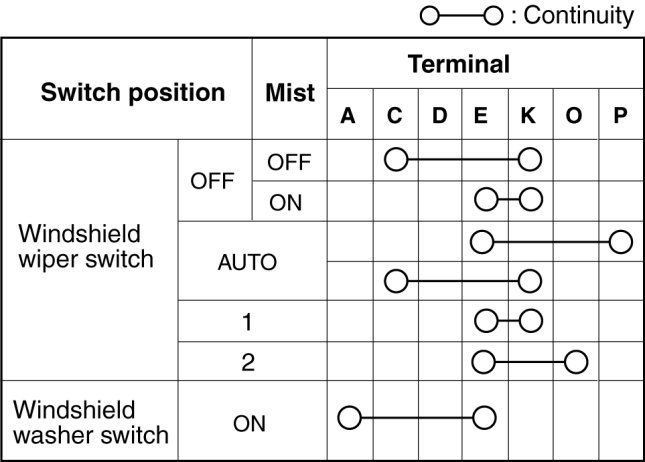

Vehicles With Auto Wiper System
