Wiper Switch: Service and Repair

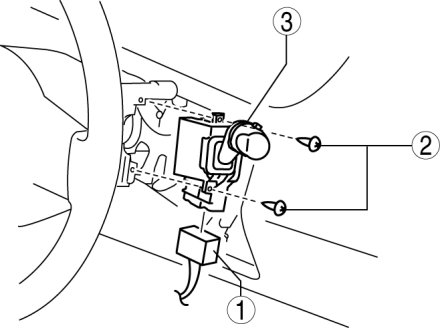

WIPER AND WASHER SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the lower column cover. Service and Repair

3. Put aside the upper column cover.

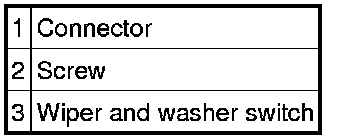

4. Remove in the order indicated in the table.

5. Install in the reverse order of removal.
