B2229

DTC B2229, B2231, B2233, B2235

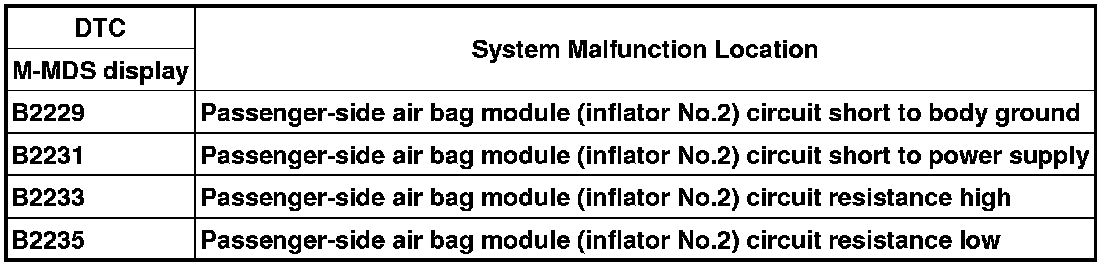

System Malfunction Location





Detection Condition

WARNING:
- Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.

- Resistance other than 1.3-4.7 ohms detected in passenger-side air bag module (inflator No.2) circuit
- Malfunction in the wiring harness between the passenger-side air bag module (inflator No.2) and SAS control module

Possible Causes

- Passenger-side air bag module connector malfunction
- Open or short circuit in the wiring harness between the passenger-side air bag module and SAS control module
- Passenger-side air bag module (inflator No.2) malfunction
- SAS control module malfunction

System Wiring Diagram





Diagnostic Procedure
