Body and Frame: Locations

FRONT END BODY PANELS

The front end body panel components consist of the following:

- Air deflectors
- Cowl grille
- Fenders
- Fender splash shields
- Hood
- Hood hinges

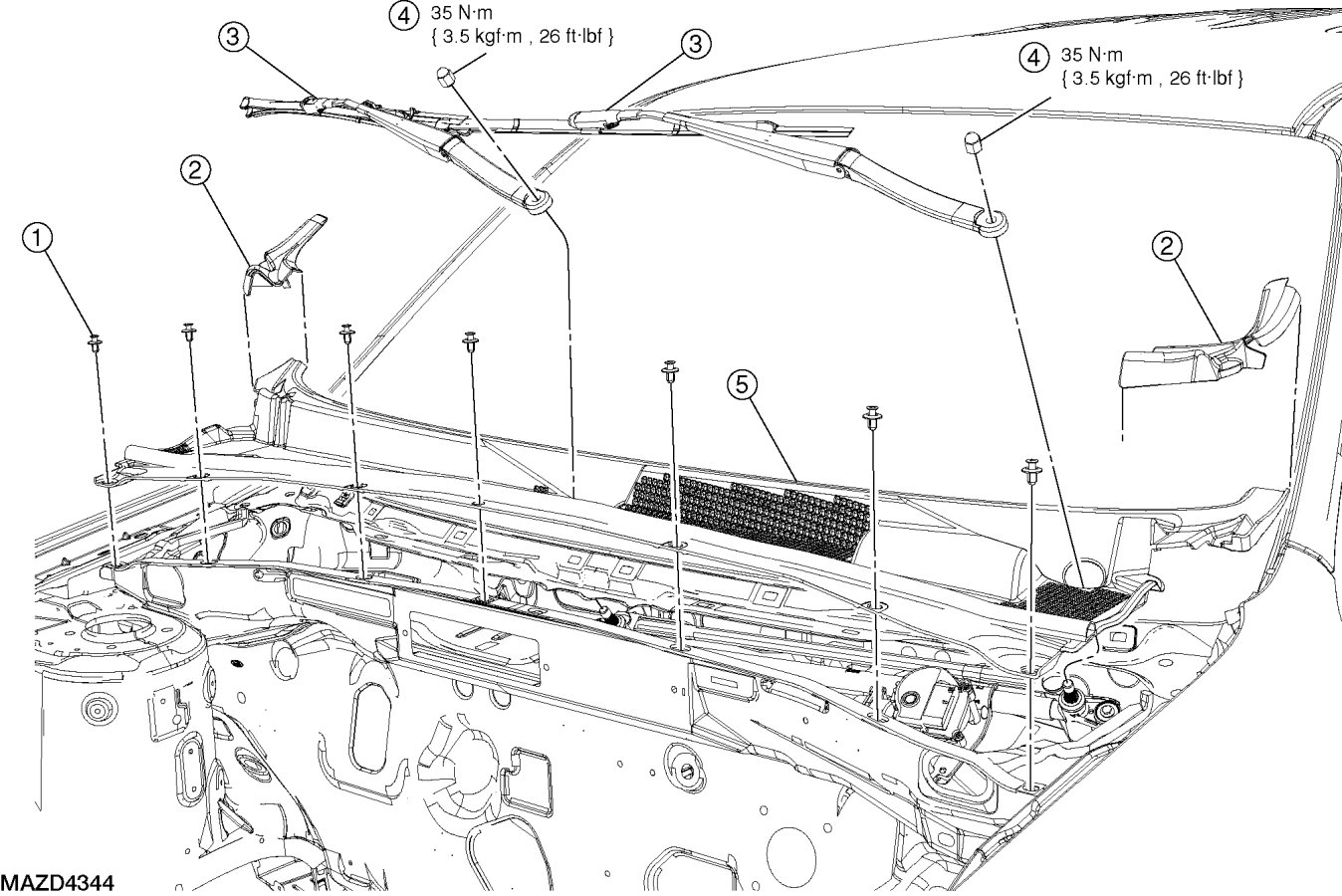

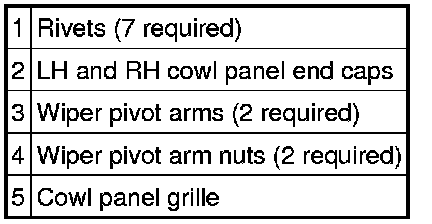

Cowl Panel Grille

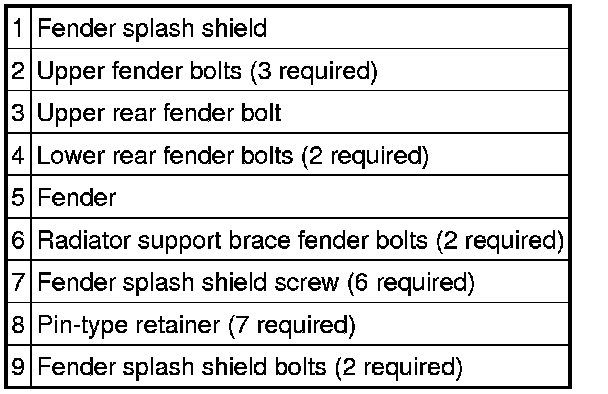

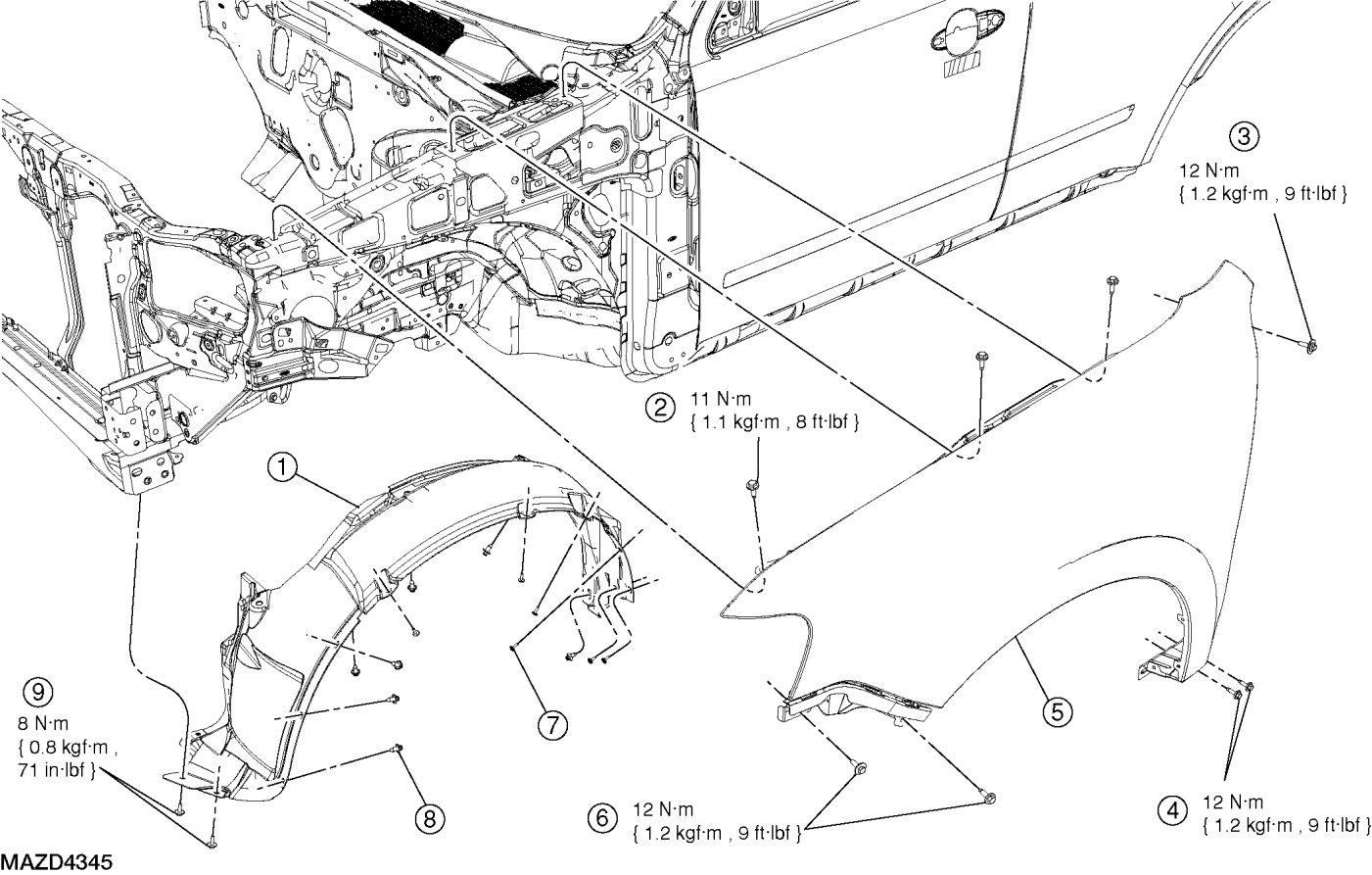

Fender










1. For additional information, see the procedures.
