Connector End Views - Speed Control
Connector End Views - Speed Control

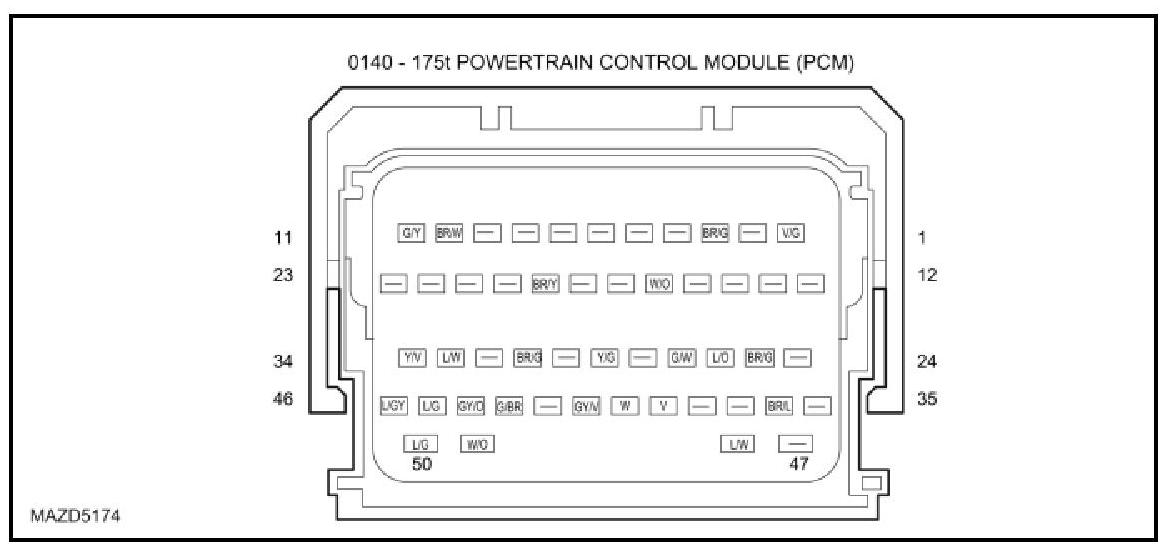

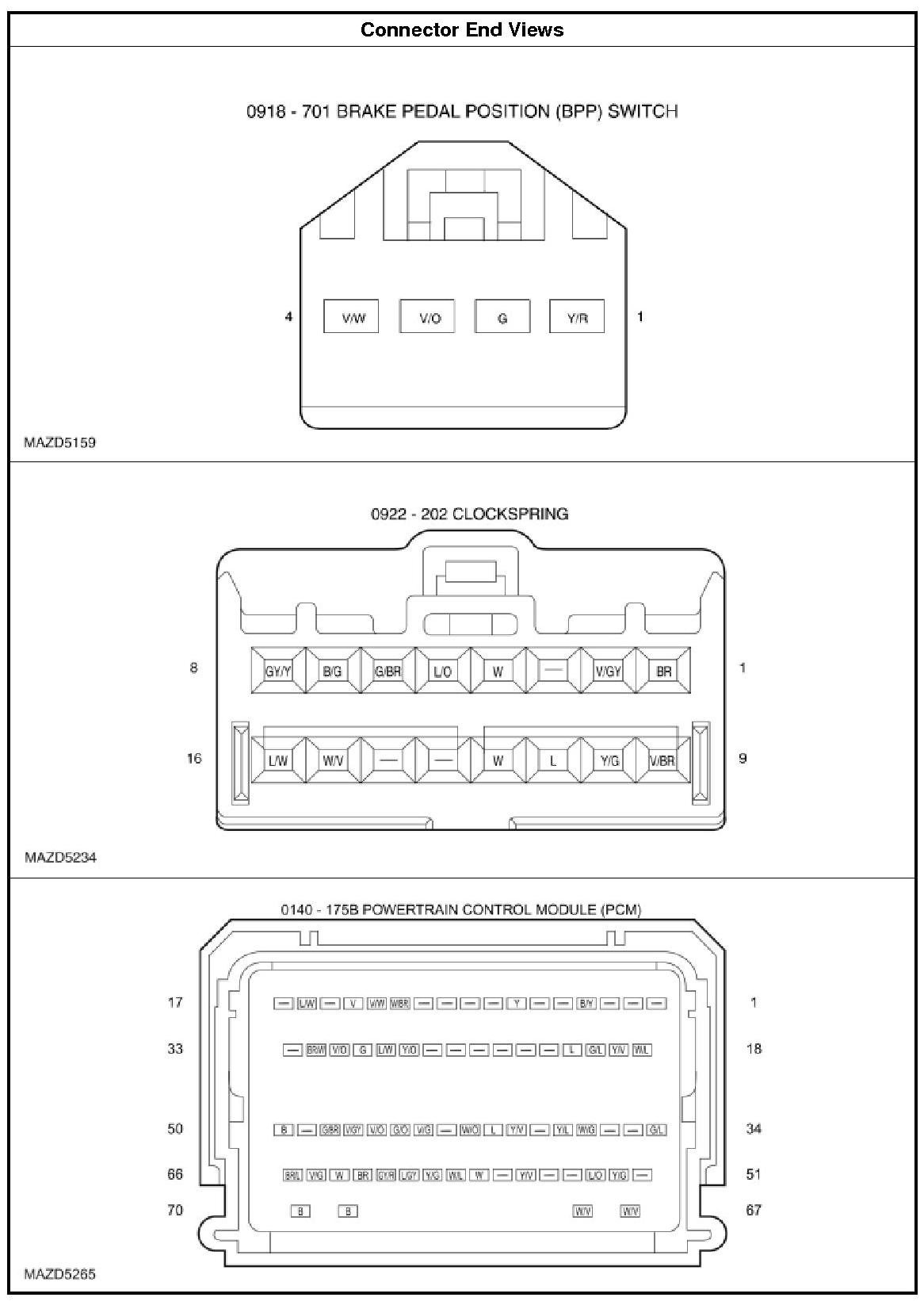

CONNECTOR END VIEWS - SPEED CONTROL - HYBRID
