Vacuum Brake Booster Diaphragm Position Sensor: Service and Repair

BRAKE BOOSTER TRAVEL SENSOR REMOVAL/INSTALLATION - HYBRID

1. Disconnect the brake booster travel sensor electrical connector.

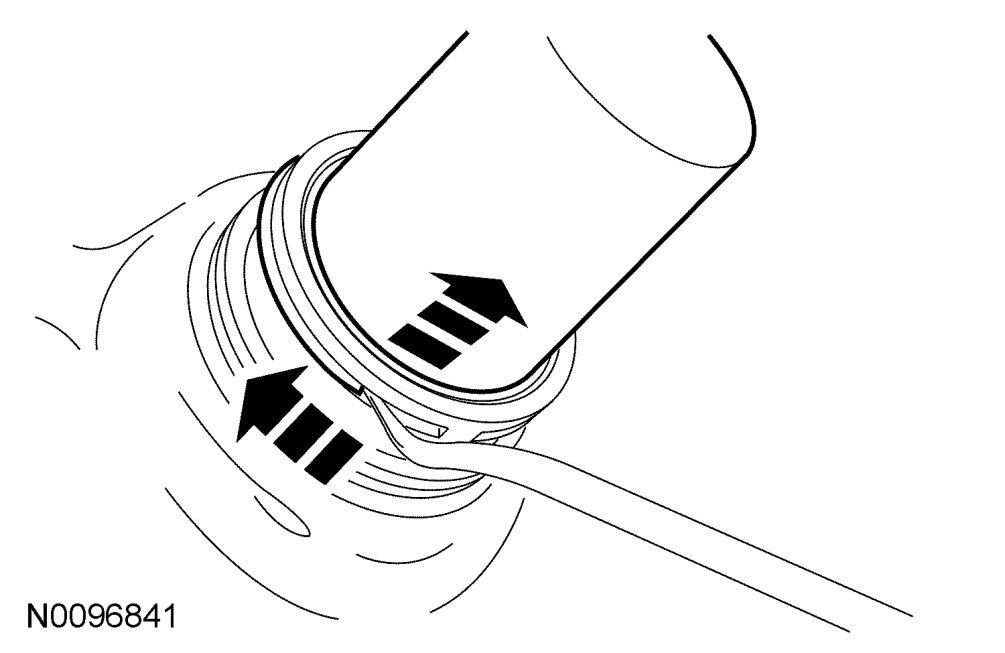

2. Release the brake booster travel sensor retainer ring and remove the travel sensor.

3. To install, reverse the removal procedure.

4. Following the scan tool instructions, carry out the Multi-Calibration Routine.
