Tribute 2WD L4-2.5L Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
System Diagram
System Diagram

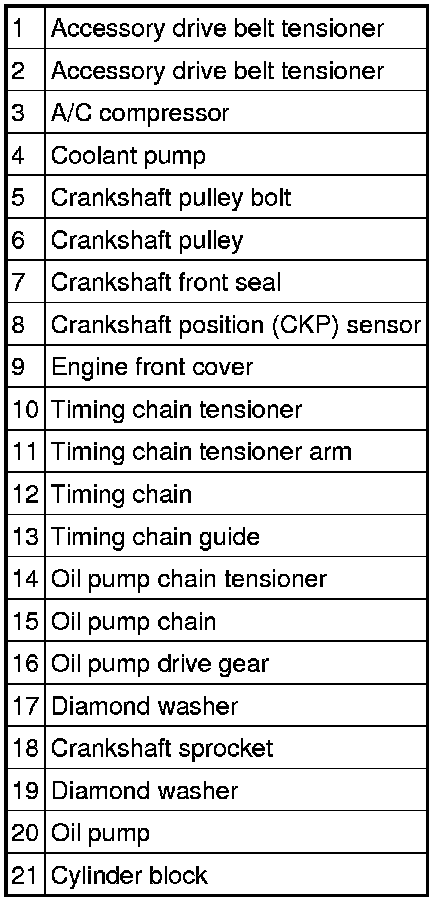

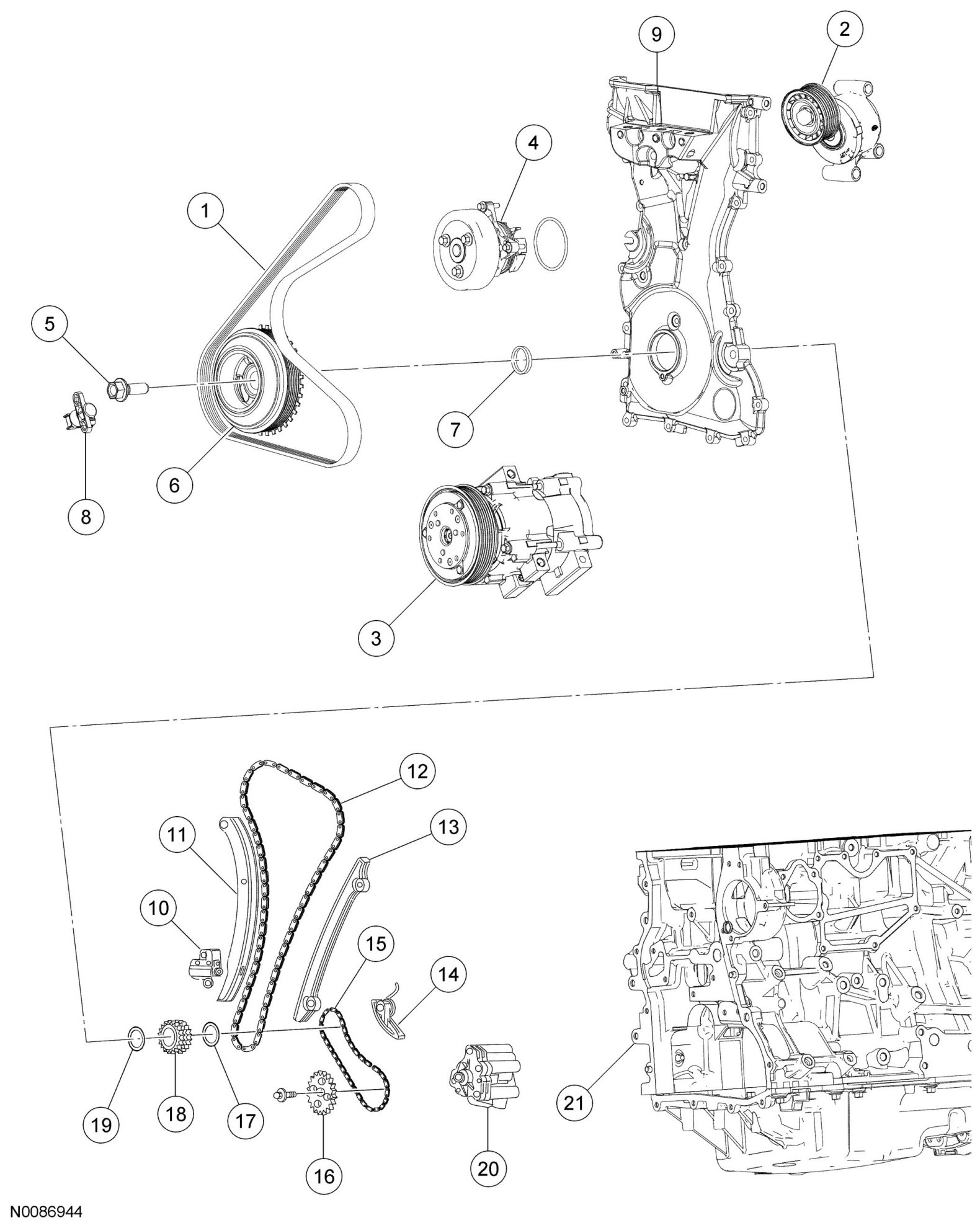

FRONT ENGINE BLOCK - HYBRID EXPLODED VIEW
1.
For additional information, see the procedures.
