Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
2011
>>
Tribute 2WD L4-2.5L Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Steering
Steering
STEERING

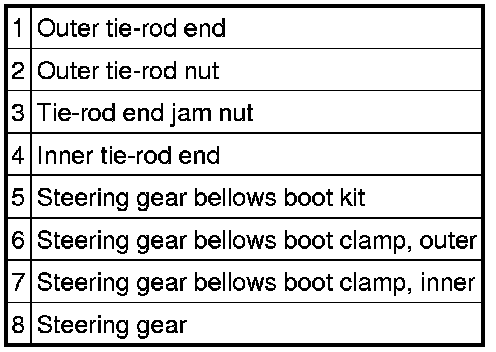

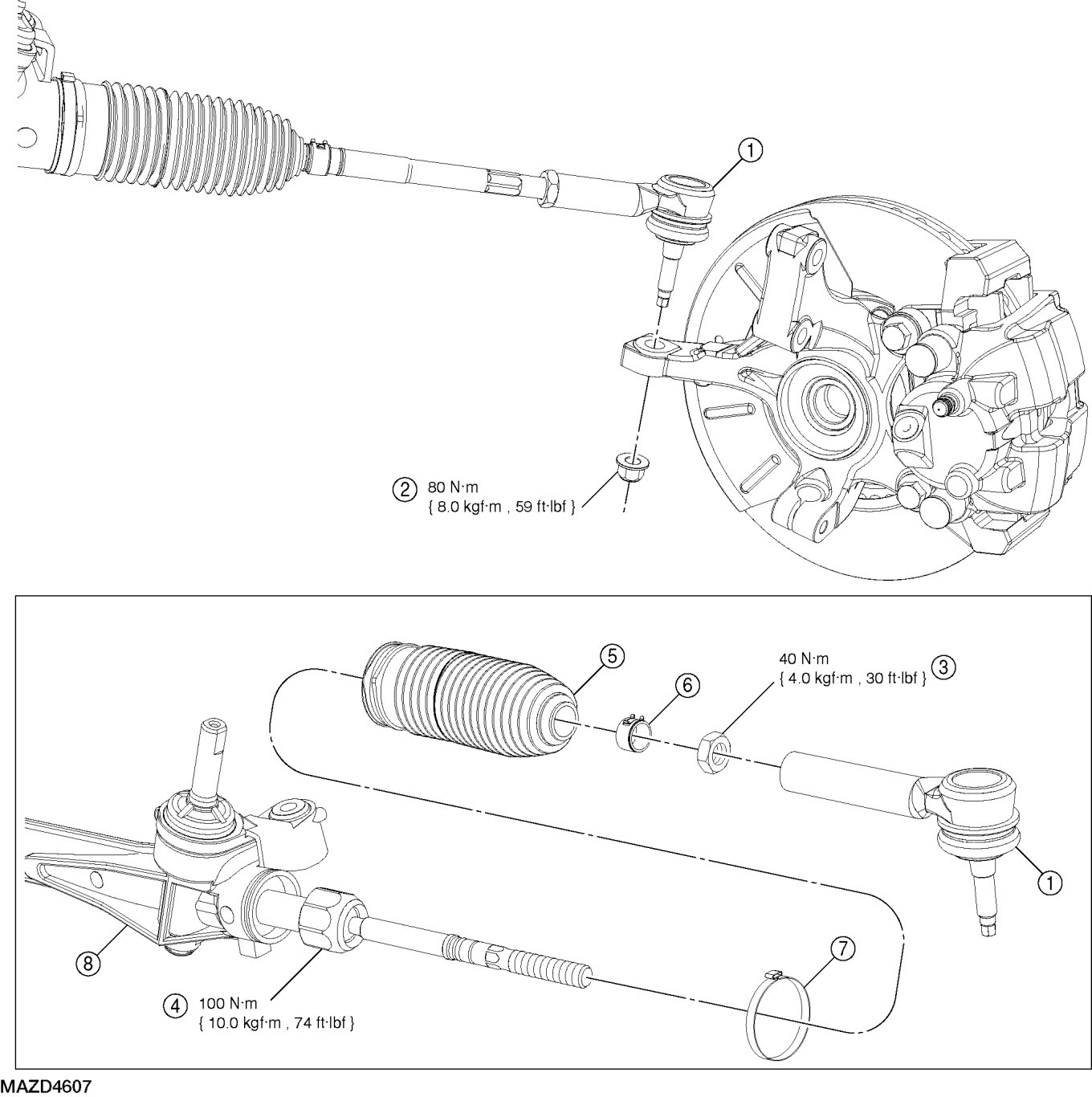

LINKAGE - EXPLODED VIEW
1.
For additional information, see the procedures.
