Ambient Temperature Sensor / Switch HVAC: Testing and Inspection

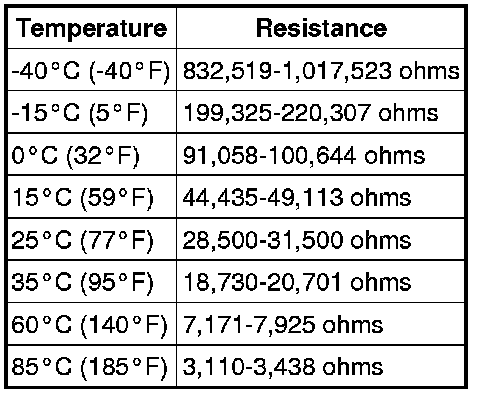

COMPONENT TEST - AMBIENT TEMPERATURE SENSOR - HYBRID

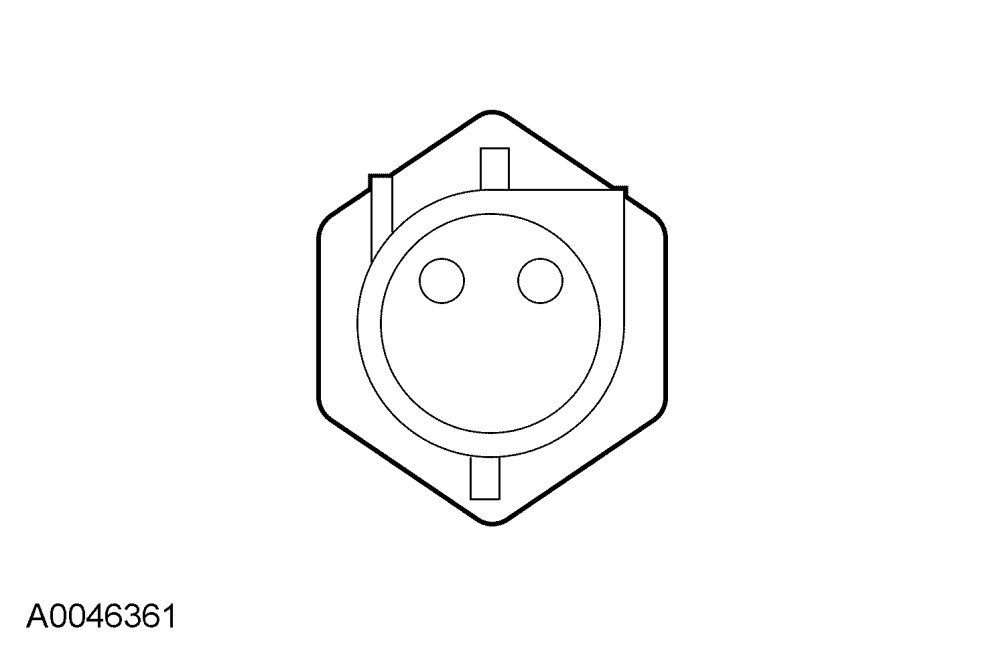

Ambient Temperature Sensor
