Cabin Temperature Sensor / Switch: Testing and Inspection

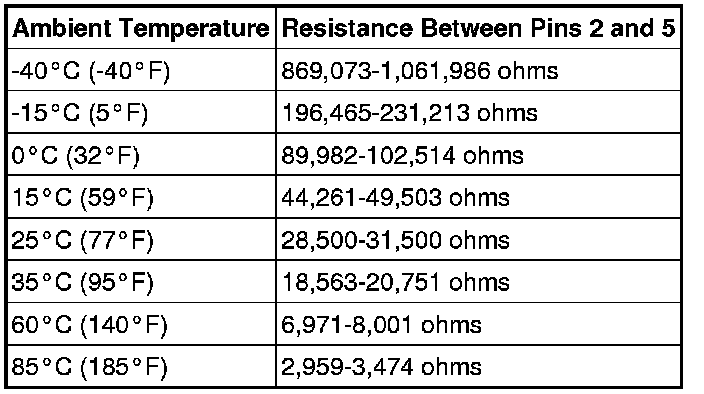

COMPONENT TEST - IN-VEHICLE TEMPERATURE SENSOR - HYBRID

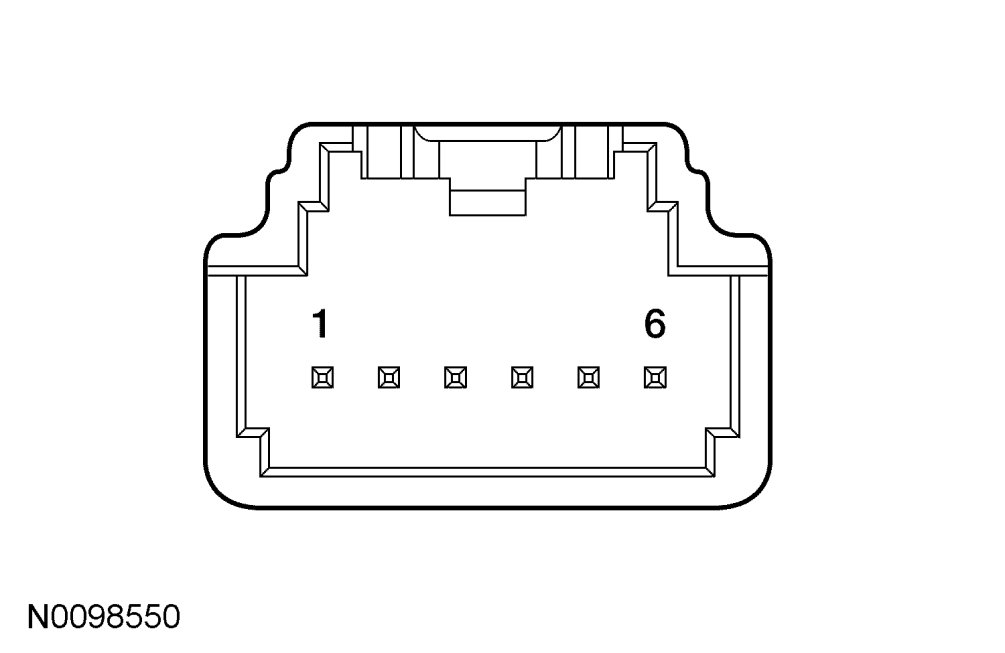

In-Vehicle Temperature Sensor
