Discharge Air Temperature Sensor / Switch: Testing and Inspection

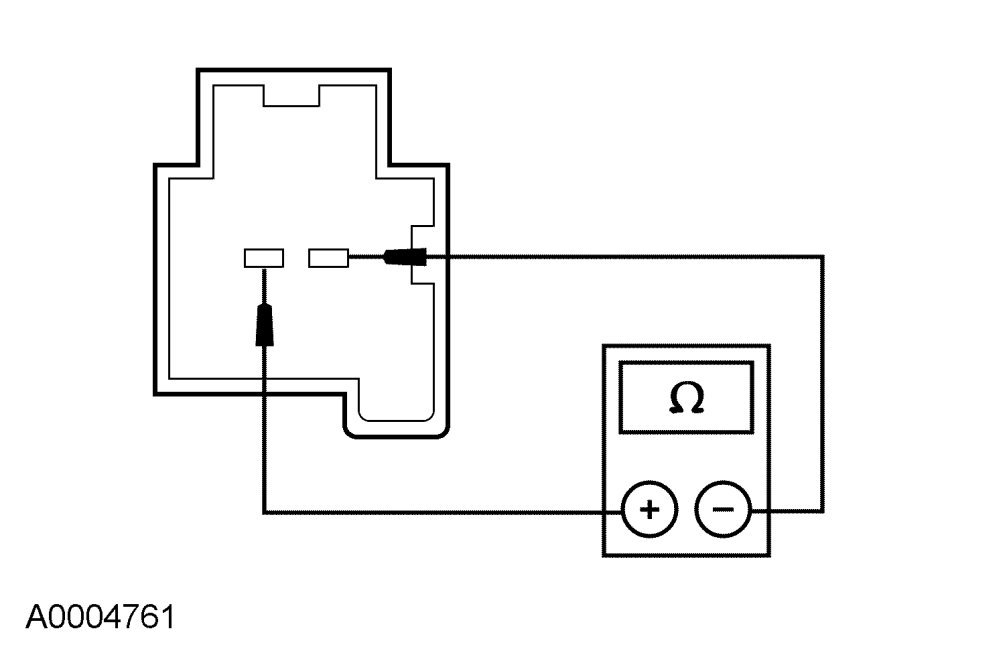

COMPONENT TEST - TEMPERATURE SENSOR - EVAPORATOR DISCHARGE - HYBRID

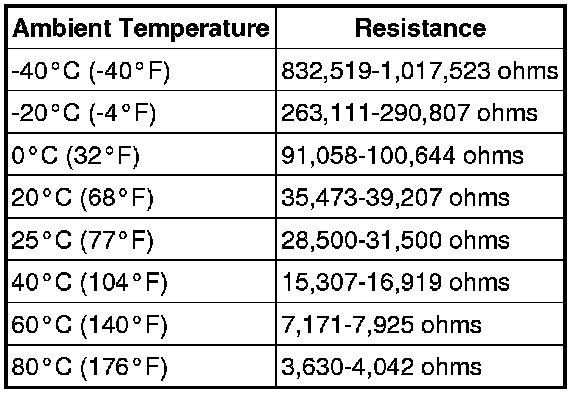

Temperature Sensor - Evaporator Discharge
