Continuously Variable Transmission/Transaxle, CVT

SPECIFICATIONS

Automatic Transaxle

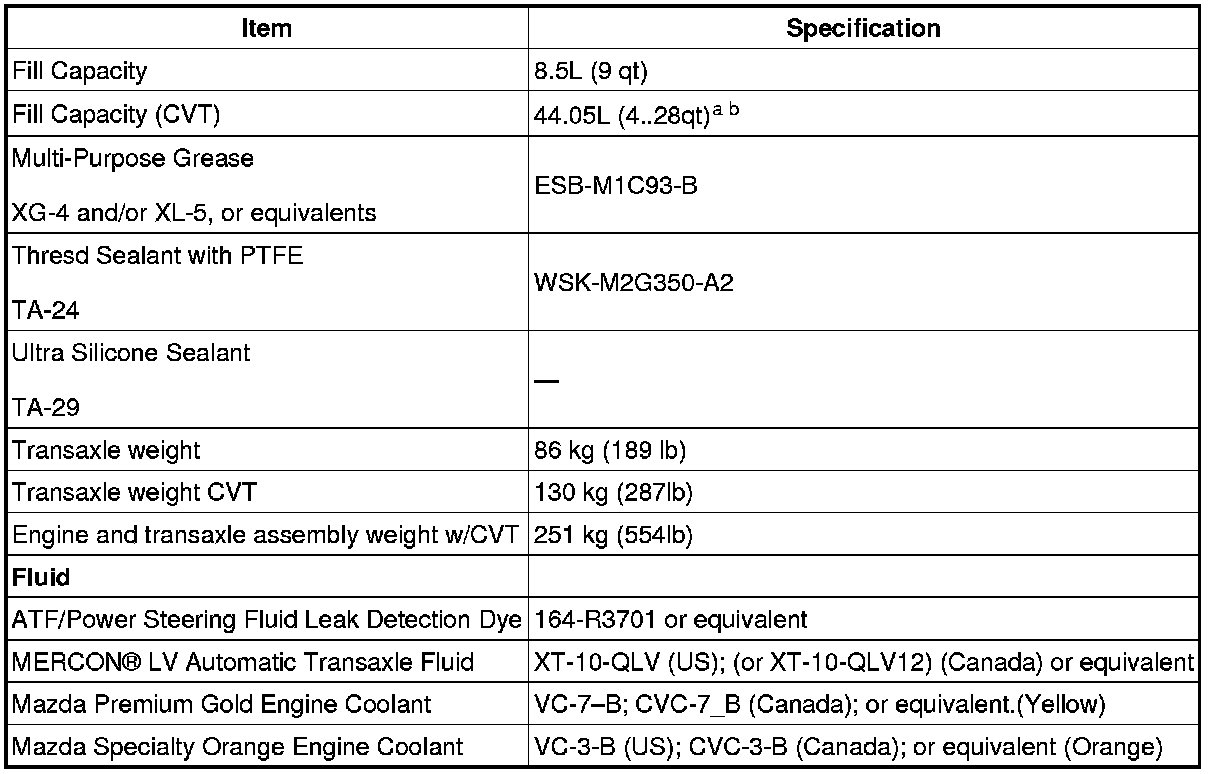

General Specifications





a Transmission fill for life.
b The correct transaxle fill level is to the bottom of the fill plug, which is the upper plug.

CAUTION:Automatic transmission fluids are not interchangeable. The use of any fluid other than what is recommended for this transaxle will cause transaxle damage. Refer to the material specification for the correct fluid. This transaxle is a fill for life and the transmission fluid should be changed every 241,402 km (150,000 mi) regardless of normal or special operating conditions.

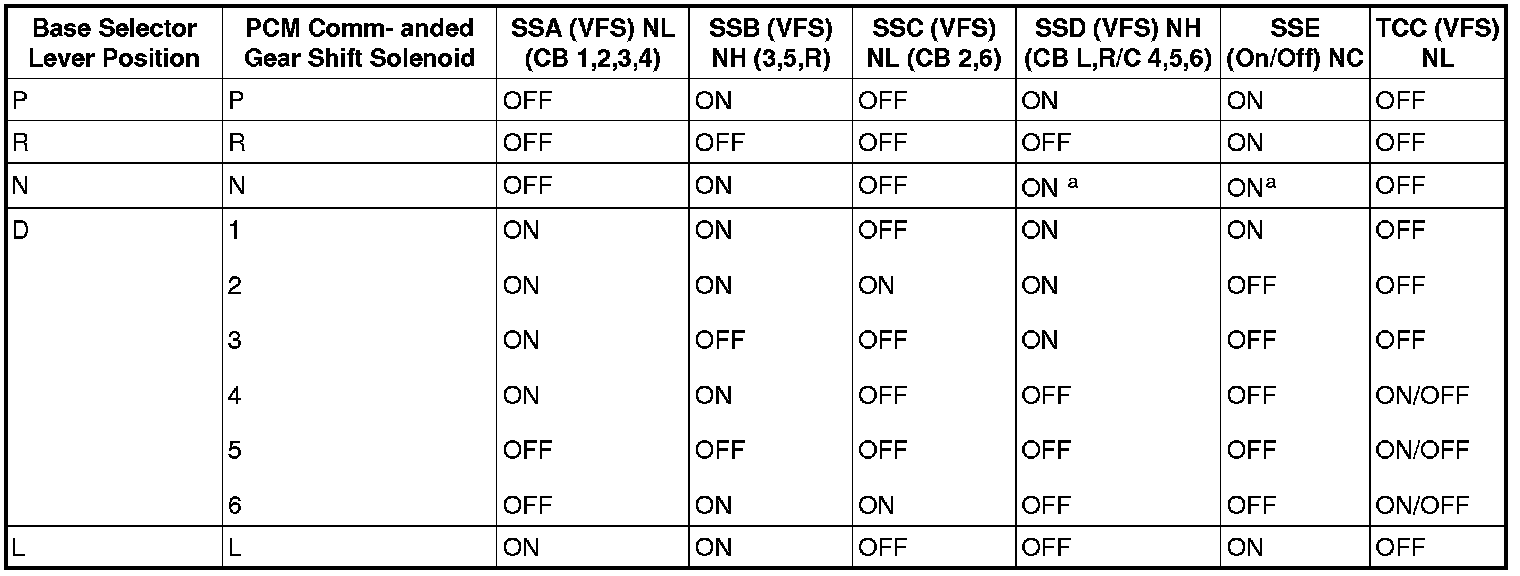

CAUTION:Do not use water-based cleaners to clean or flush the cooler tubes or transmission damage will occur. Mineral spirits can be used to clean the cooler tubes, providing the cooler tubes are flushed with clean automatic transmission fluid and blown dry with shop air. Use only clean automatic transmission fluid designated for the transmission and torque converter being serviced. Solenoid Operation Chart





a Solenoid state will change if vehicle is moving forward with the selector lever in the NEUTRAL position.

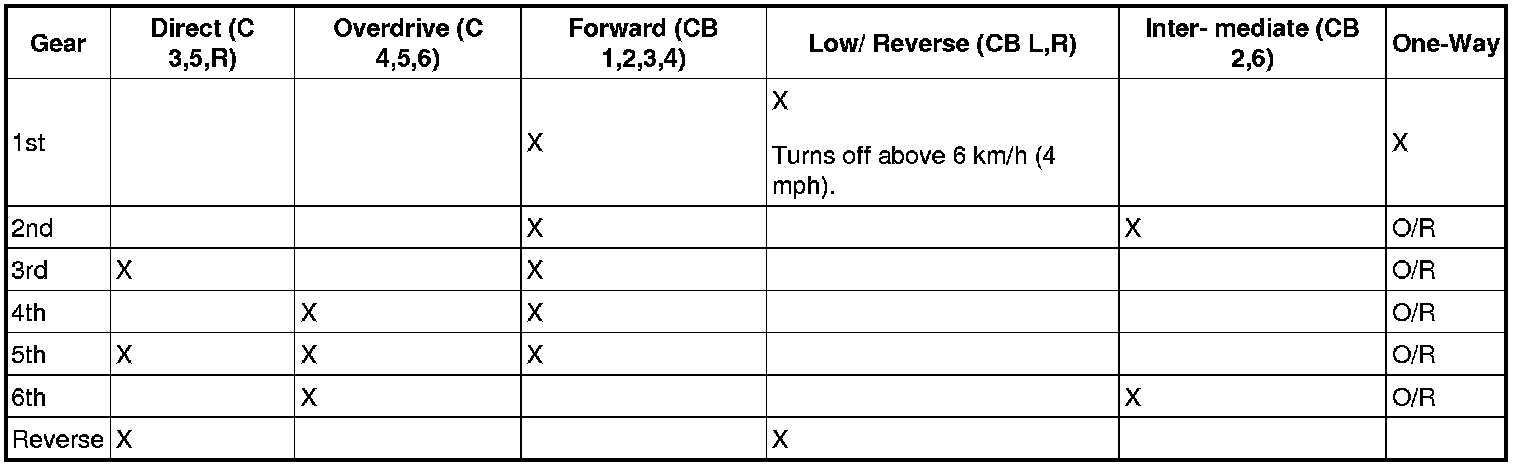

CB = Clutch brake NC = Normally closed NH = Normally high NL = Normally lowClutch Application Chart





- CB = Clutch brake
- O/R = Overrunning

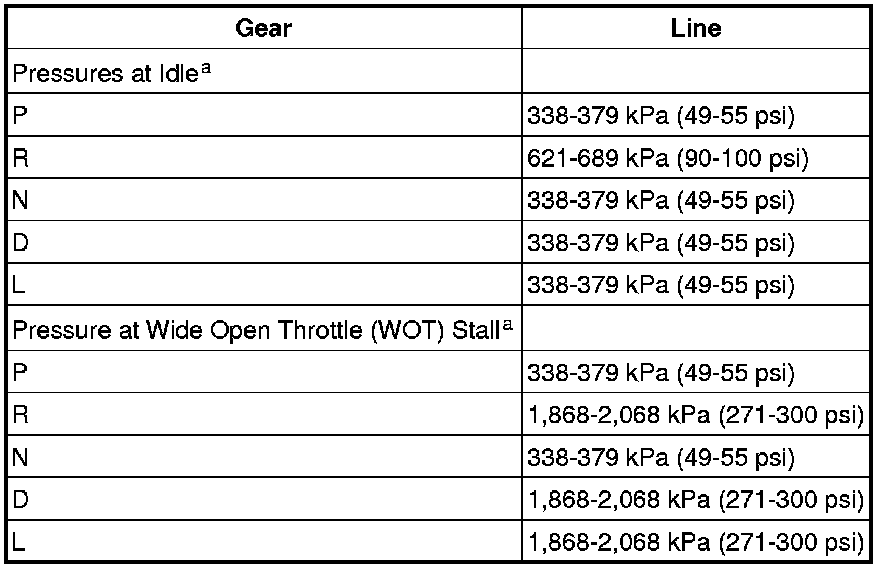

Line Pressure Chart

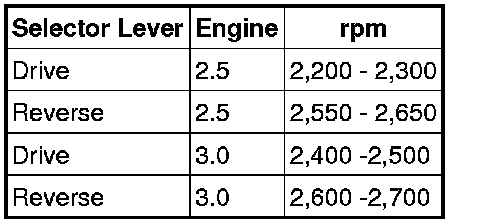

a All pressures are approximateStall Speed Chart

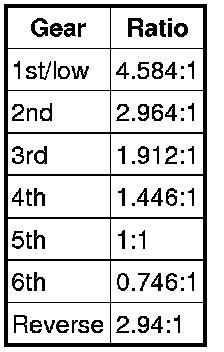

Gear Ratio Chart

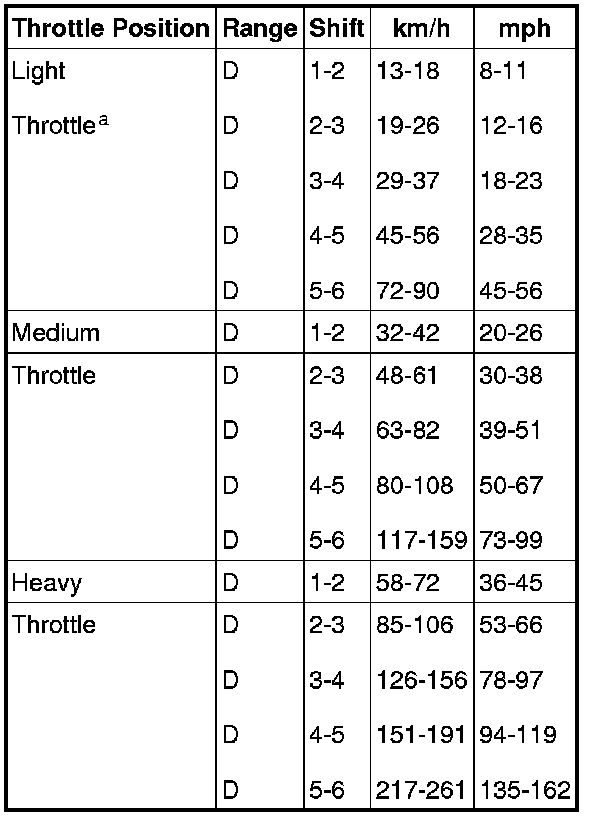

Shift Speeds - 2.5L

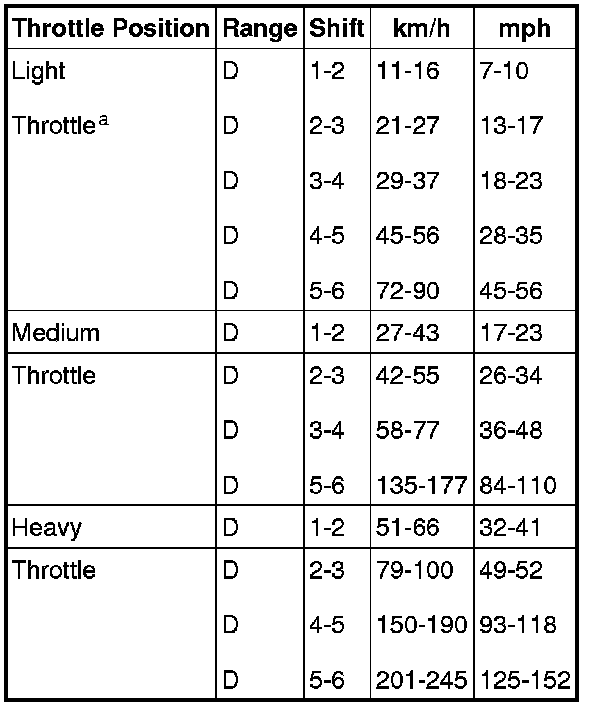

a Do not exceed the speed limit.Shift Speeds - 3.0L





a Do not exceed the speed limit.
