Engine Technical Data




SPECIFICATIONS - HYBRID

General Specifications

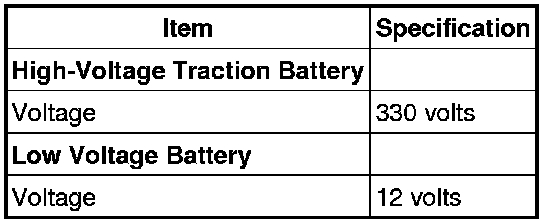

Traction Battery Specifications

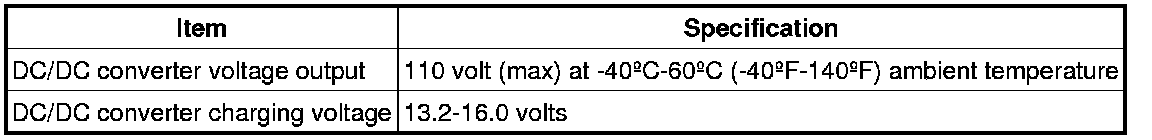

High-Voltage Converter/Inverter

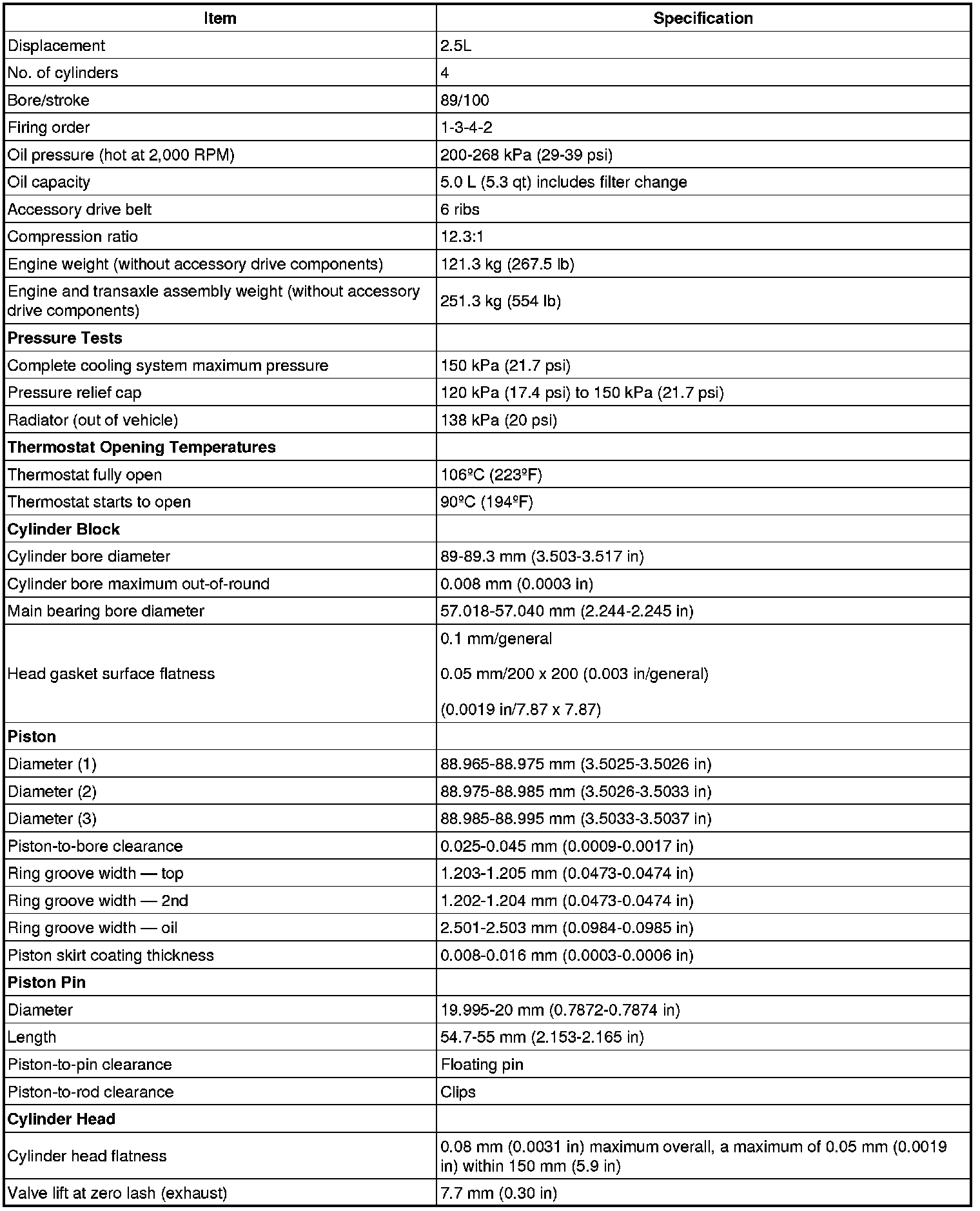

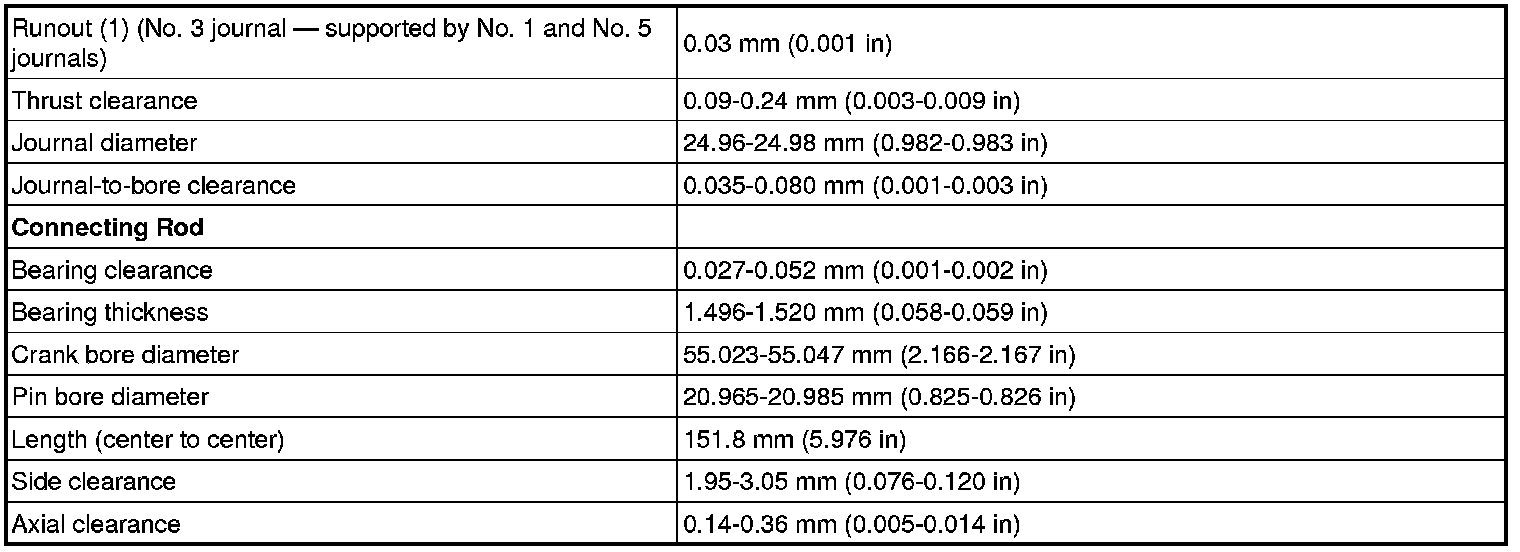

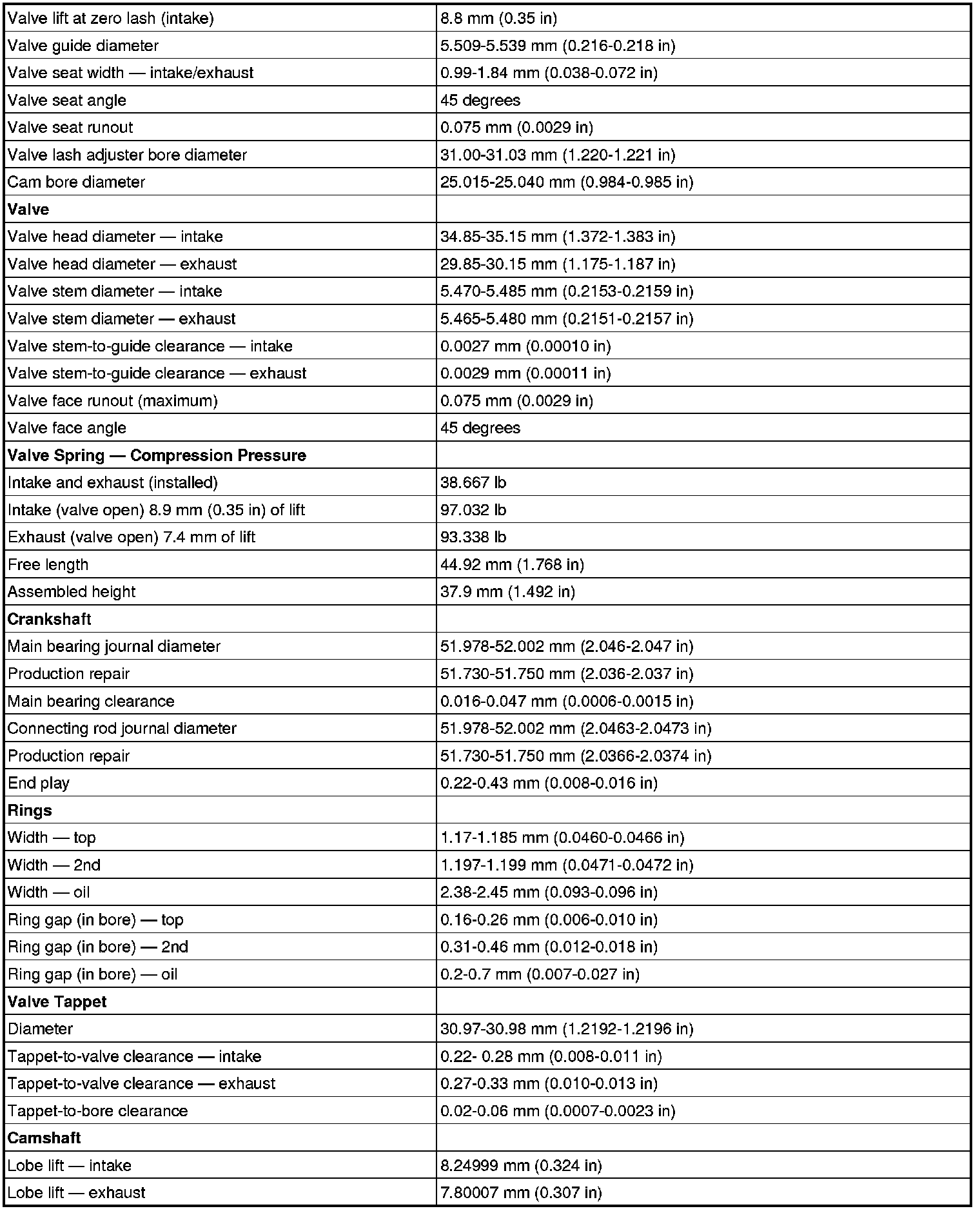

Hybrid Engine
