Exhaust Manifold

New exhaust manifold studs in the cylinder head.

Tighten to 17 Nm {1.7 kgf-m, 150 in-lbf}.

Exhaust Manifold

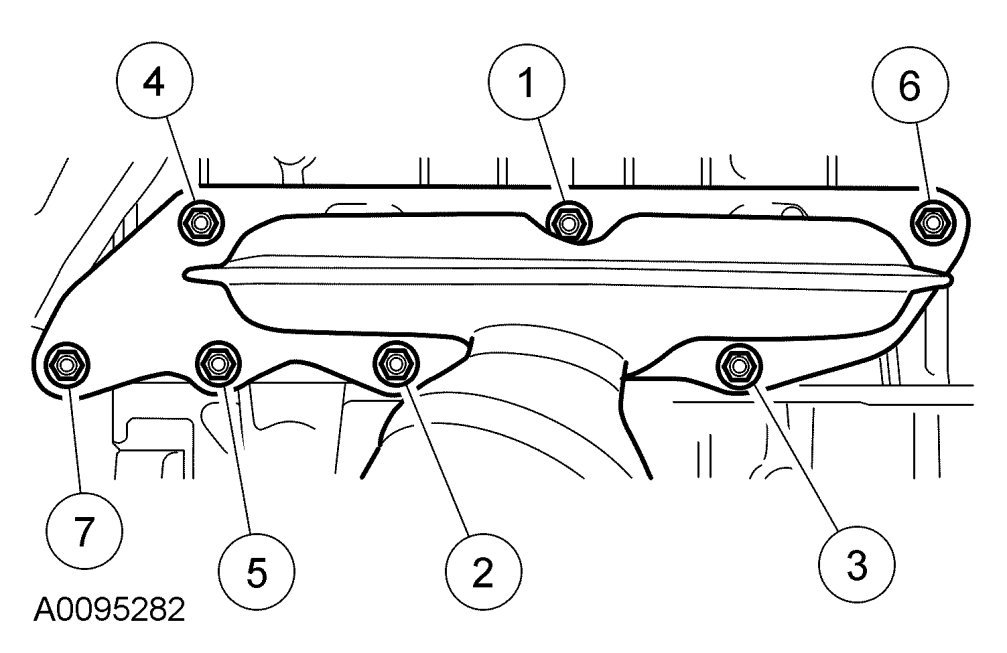

Tighten the nuts in the sequence shown in 2 stages.
Tighten to 48 Nm {4.9 kgf-m, 35 ft-lbf}.
Tighten to 48 Nm {4.9 kgf-m, 35 ft-lbf}.
