Battery: Locations

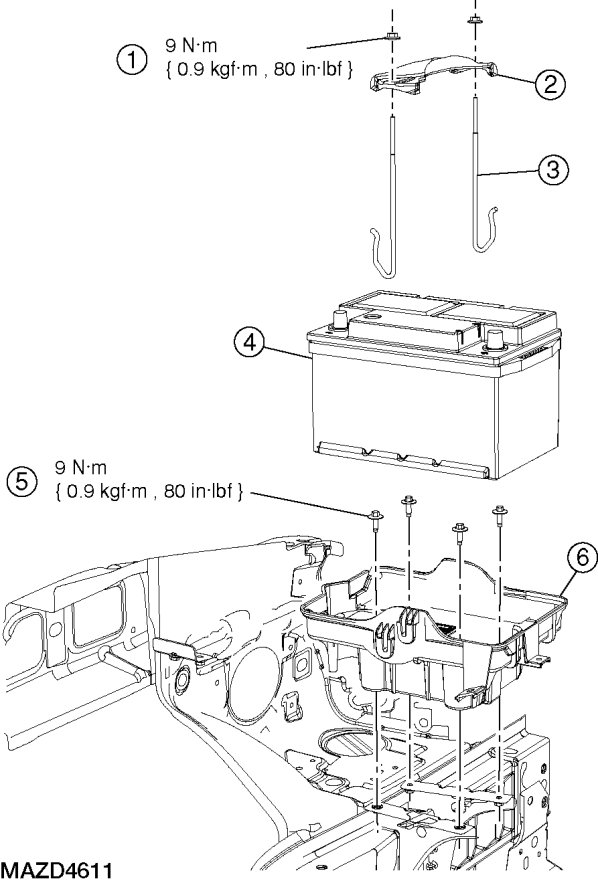

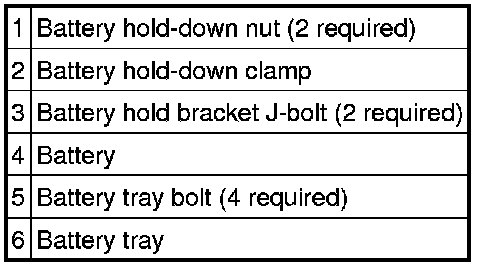

BATTERY AND BATTERY TRAY - EXPLODED VIEW
1.
For additional information, see the procedures.
