Connector End Views - Power Systems
Connector End Views - Power Systems

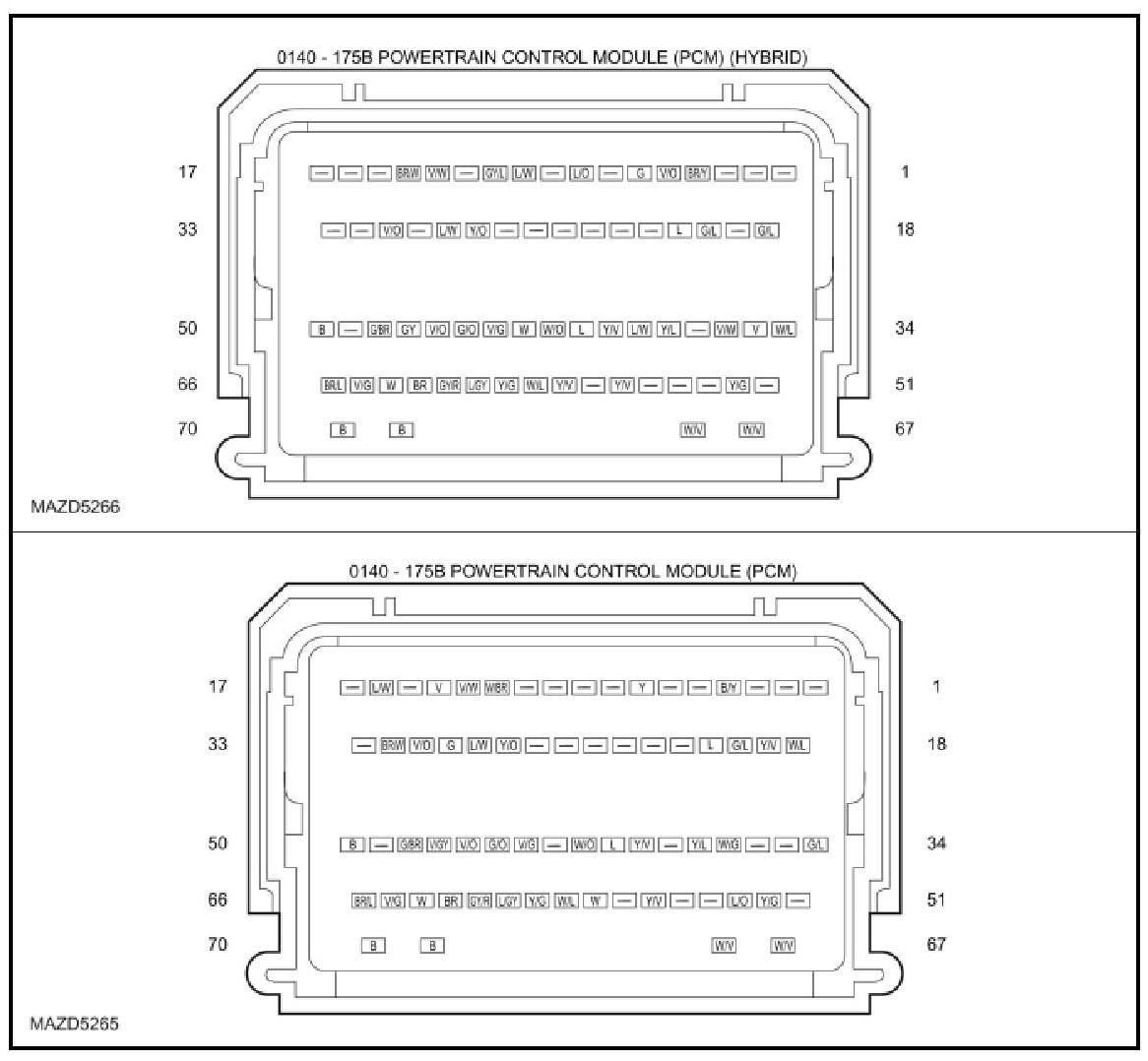

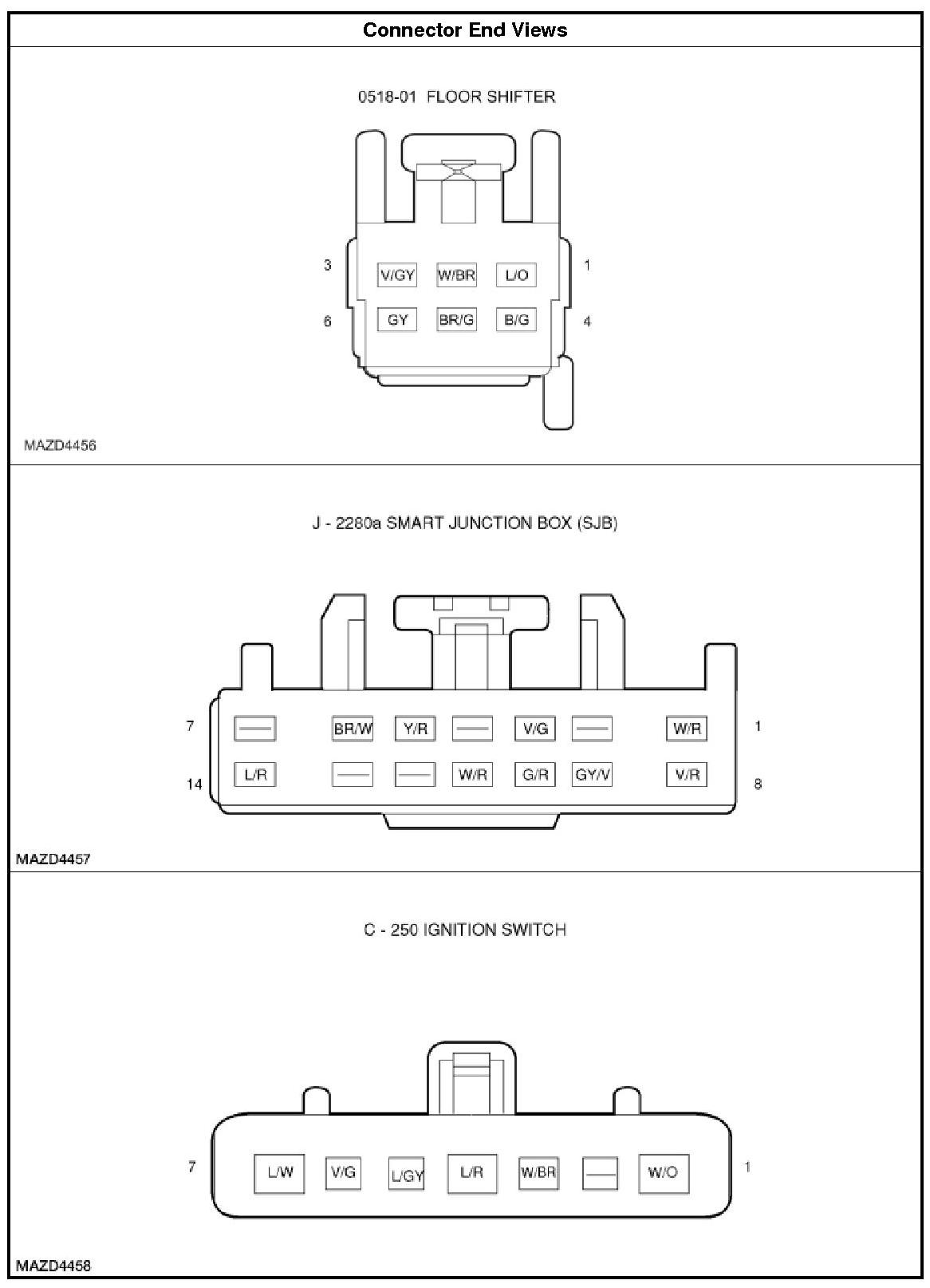

CONNECTOR END VIEWS - POWER SYSTEMS
