Liftgate Window Glass: Service and Repair

LIFTGATE WINDOW GLASS REMOVAL/INSTALLATION









1. Open the liftgate window glass.

2. Remove the 2 liftgate window glass nut access covers.

3. Through the RH access, disconnect the liftgate window glass electrical harness connector.

4. Disconnect the LH heated window grid wire electrical connector.





NOTE:An assistant may be needed to carry out this step.

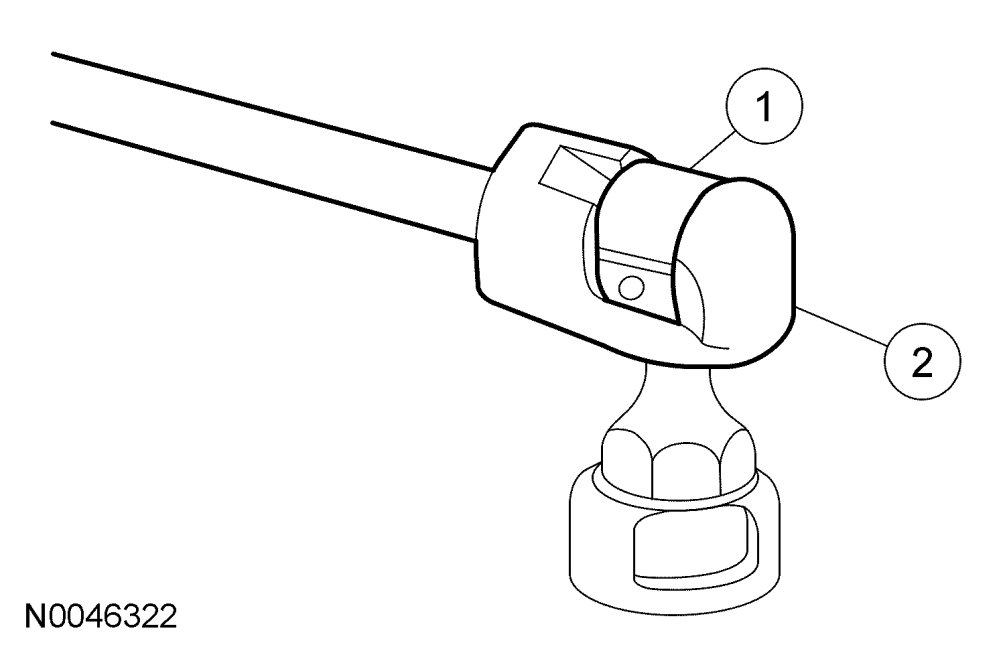

5. Disconnect the 2 liftgate window glass cylinders.
a. Slide the spring retainer to the end of the socket.

b. Disconnect the socket from the ball stud.

NOTE:An assistant may be needed to carry out this step.

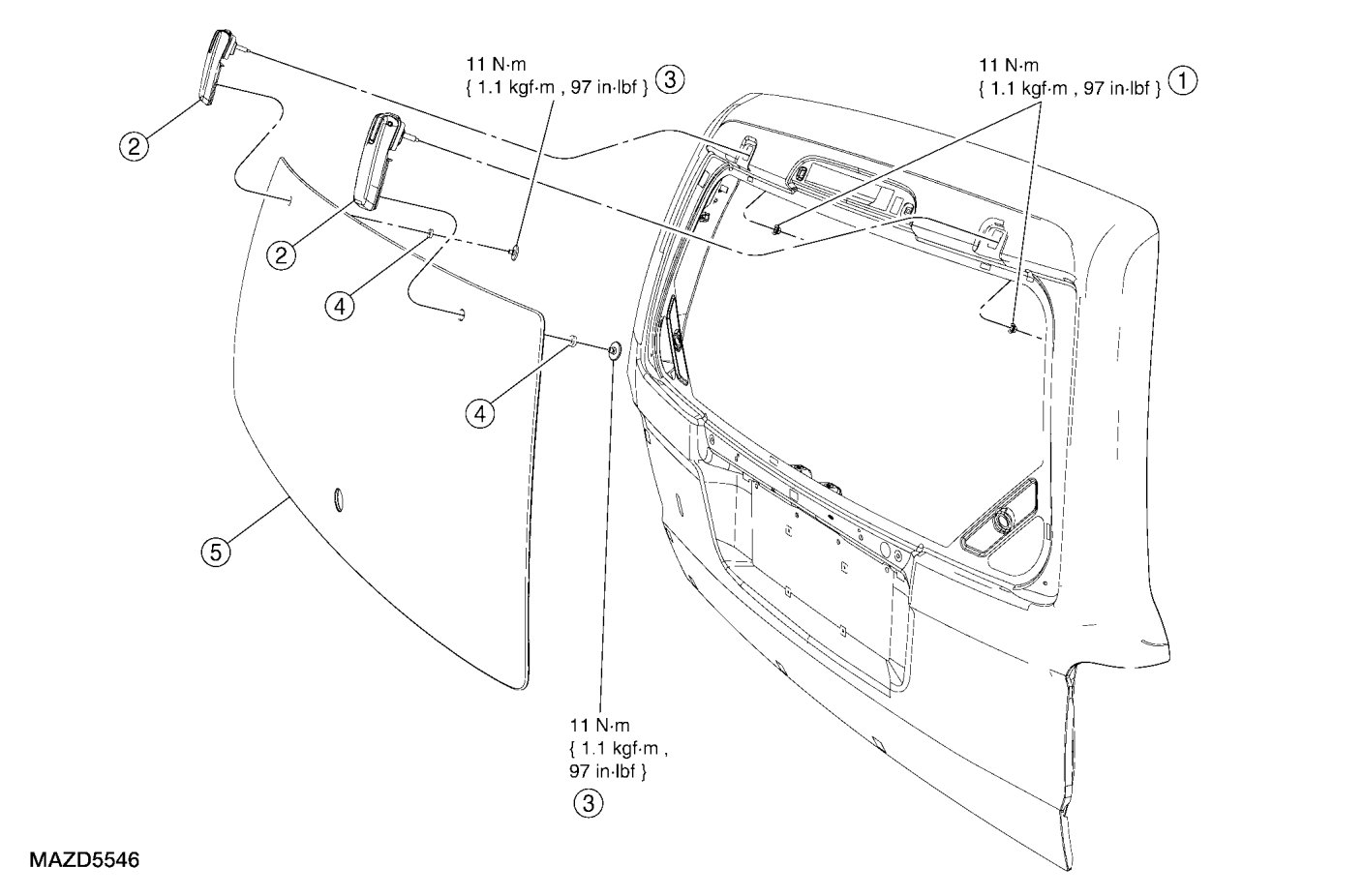

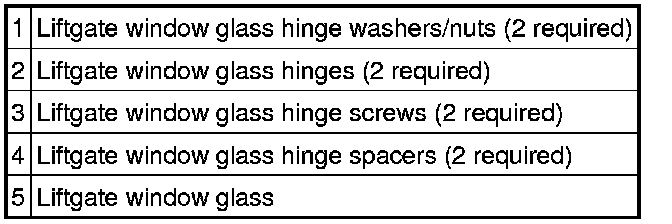

6. Remove the 2 liftgate window glass hinge nuts and the liftgate window glass.

- To install, tighten to 11 Nm {1.1 kgf-m, 97 in-lbf}.

7. To install, reverse the removal procedure.

- Transfer components as necessary.
