Safety Compliance Certification Labels

SAFETY COMPLIANCE CERTIFICATION LABELS

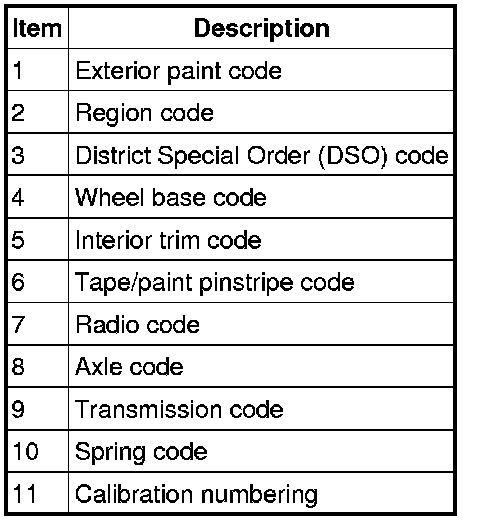

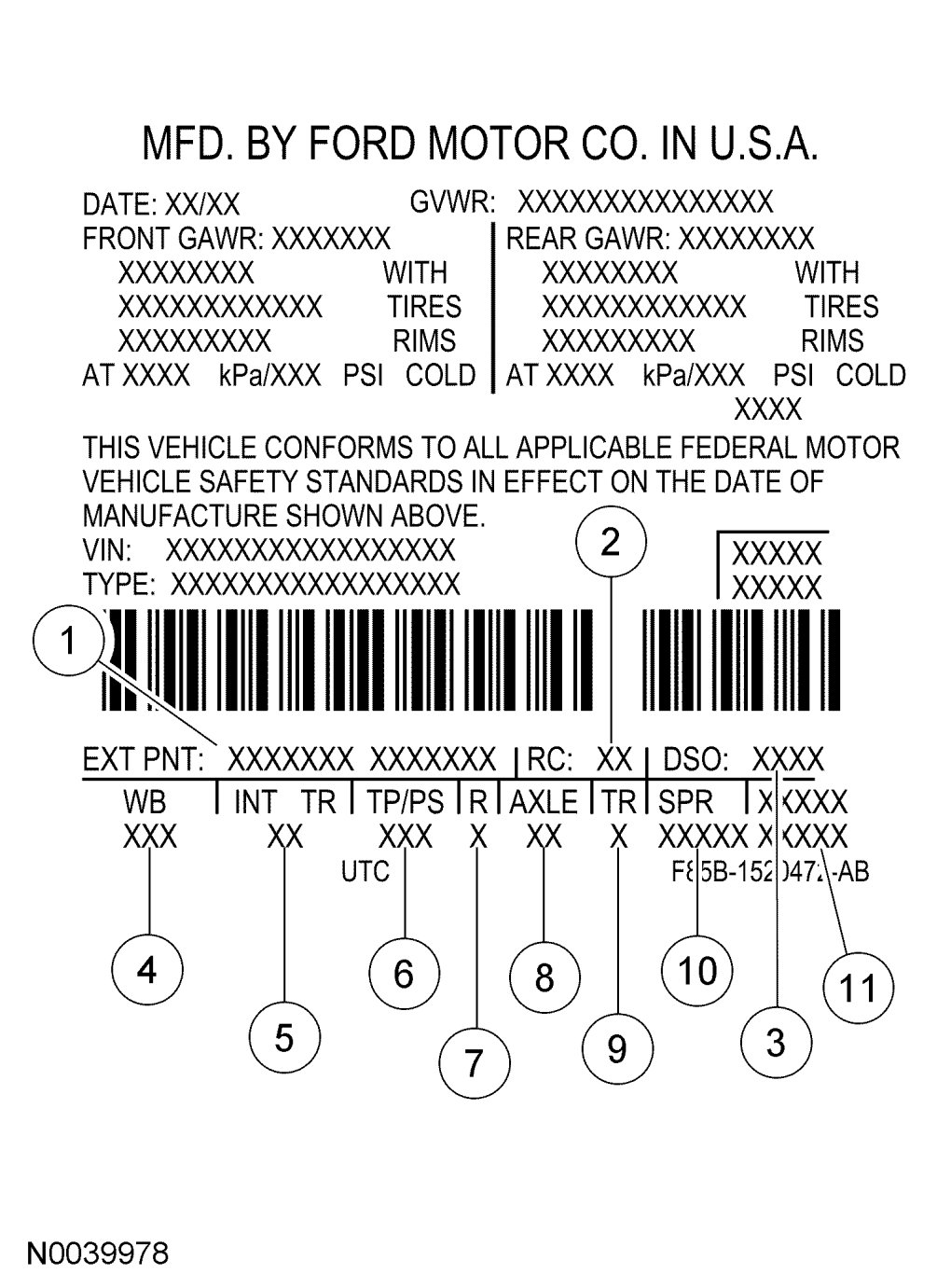

Vehicle Certification (VC) Label

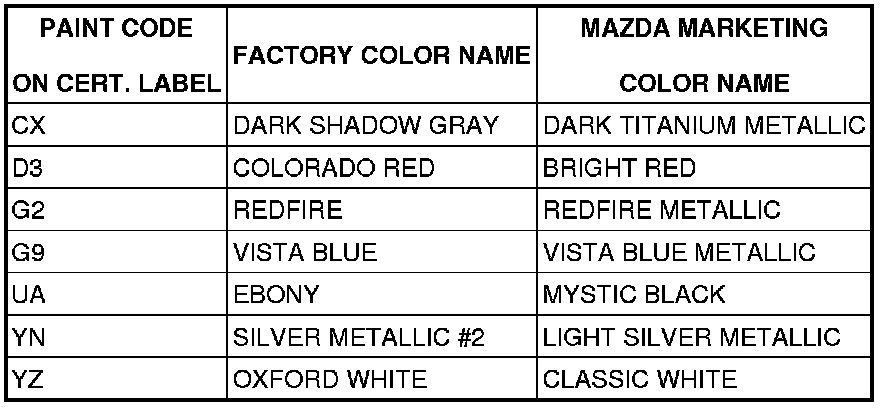

Paint Codes





Wheel Base

- 112 - 112-inch wheelbase
- 126 - 128-inch wheelbase

Brake Type

- B - Four-wheel anti-lock brake system (ABS)

Interior Trim Codes

Interior trim codes are listed as a two-part code. The first code listed identifies the trim level. The second code listed identifies the interior trim color.

Interior Trim Type

- Q - Split bench - vinyl
- 3 - Split bench - cloth
- 4 - Bucket seats - cloth

Interior Color Codes (right digit)

- F - Medium/Dark Flint

Tape/Paint Pinstripe Code

- P - Platinum, Styleside
- S - Silver, Styleside
- R - Orange, Metallic
- G - Burnt Orange, Metallic (Mexico units only)
- B - Pastel Blue, Metallic (Mexico units only)
- X - SPO paint

Radio Codes

- 7 - AM/FM stereo with clock
- Z - AM/FM stereo with single compact disc (CD) player
- B - AM/FM stereo with six disc compact disc (CD) changer

Axle Codes

The following lists the gear ratios on axles.

- 86 - 3.73 non-limited slip, 2WD/4WD
- 87 - 4.10 non-limited slip, 2WD/4WD
- 95 - 3.55 non-limited slip, 2WD
- 96 - 3.73 non-limited slip, 4WD
- 97 - 4.10 non-limited slip, 4WD

Transmission Type

- D - Five speed automatic (A5LD/5R55E)
- R - Five speed manual (M5R1)
- J - Five speed manual (R1HD)

Spring Codes

Spring codes are listed as a two-part code. The first character identifies the front spring/torsion bar code. The second character identifies the rear spring code.

Front Spring Codes
- A - 2WD
- C - 2WD
- D - 2WD
- E - 2WD
- J - 2WD
- 2 - 2WD
- 3 - 2WD
- 5 - 2WD
- F - 2WD
- B - 2WD
- I - 2WD

Torsion Bars

- B - 4WD
- F - 4WD
- 1 - 4WD

Rear Springs

- 3
- 7
- C
- K
- N
