Front Bumper: Service and Repair

FRONT BUMPER REMOVAL/INSTALLATION

1. Remove the front bumper cover. See Service and Repair.

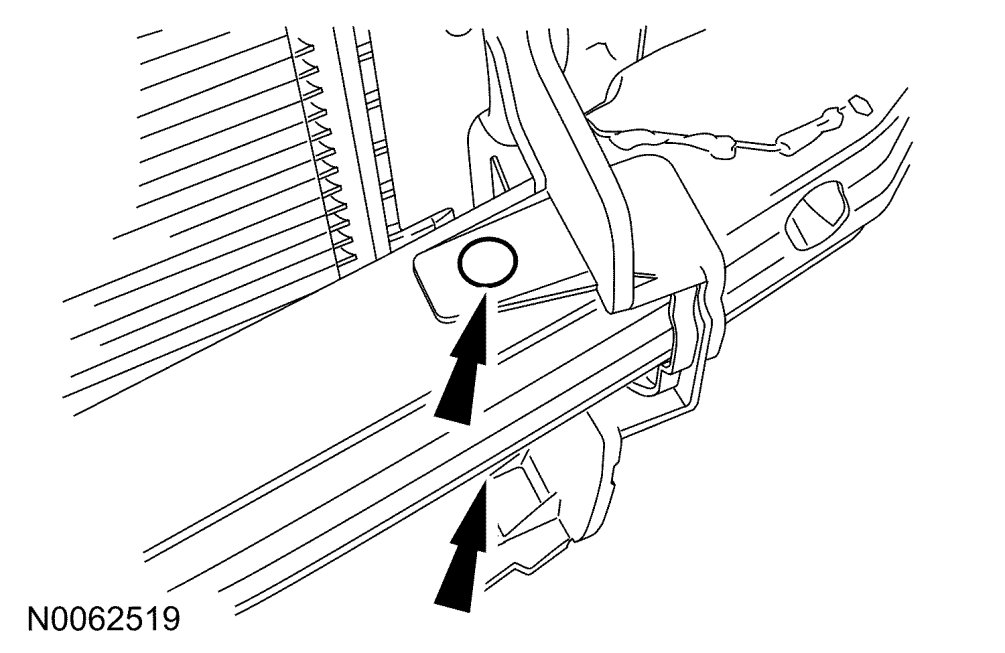

2. Remove the 2 pushpins (1 each side) from the front bumper beam.





3. If equipped, remove the ambient air temperature sensor from the front bumper.





4. Remove the 3 front bumper nuts (2 each side).

- To install, tighten to 25 Nm {2.5 kgf-m, 18 ft-lbf}.

5. Remove the front bumper.

6. To install, reverse the removal procedure.
