Drum Brake System: Locations

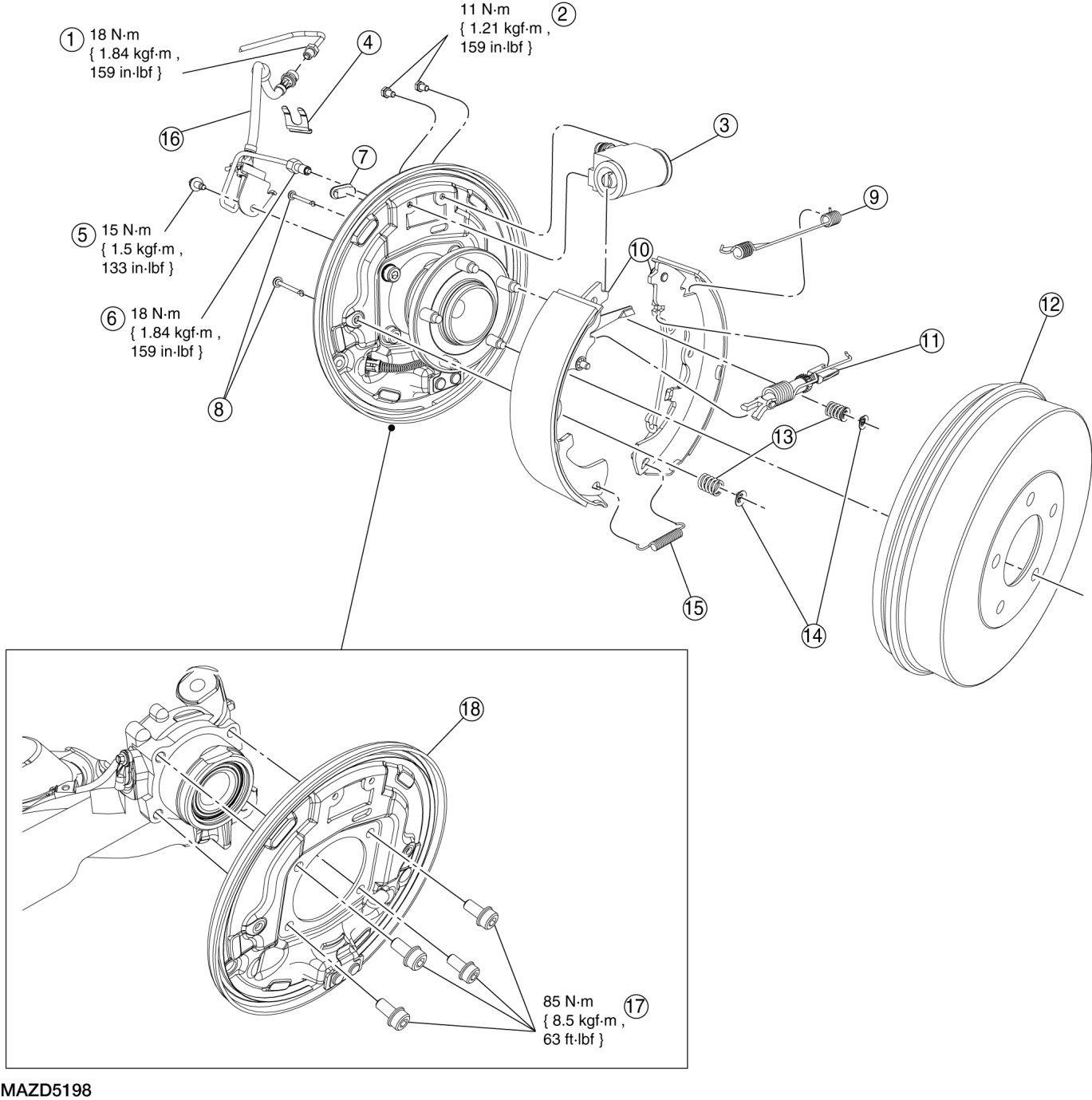

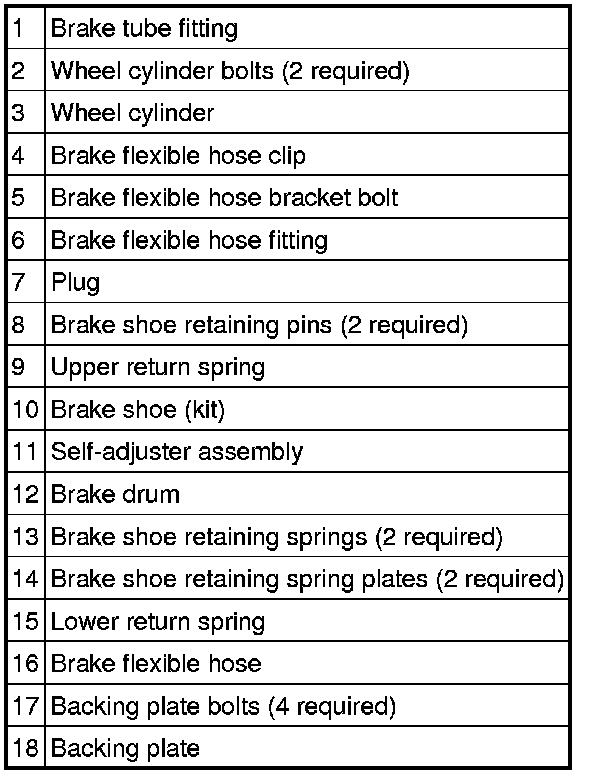

DRUM BRAKE SYSTEM - EXPLODED VIEW









1. For additional information, see the procedures.
