Valve Spring - Free Length

VALVE SPRING - FREE LENGTH

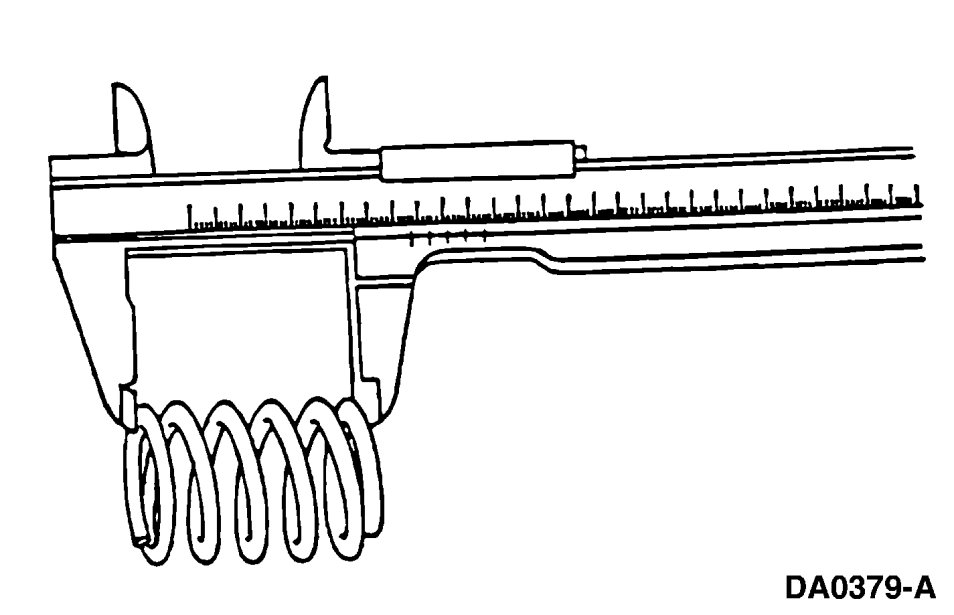

1. Measure the free length of each valve spring.

- If out of specification, install new components. See - or - Service and Repair.

NOTE:See Engine Technical Data for the specification.
