Exhaust System Exploded View

EXHAUST SYSTEM EXPLODED VIEW - 3.0L

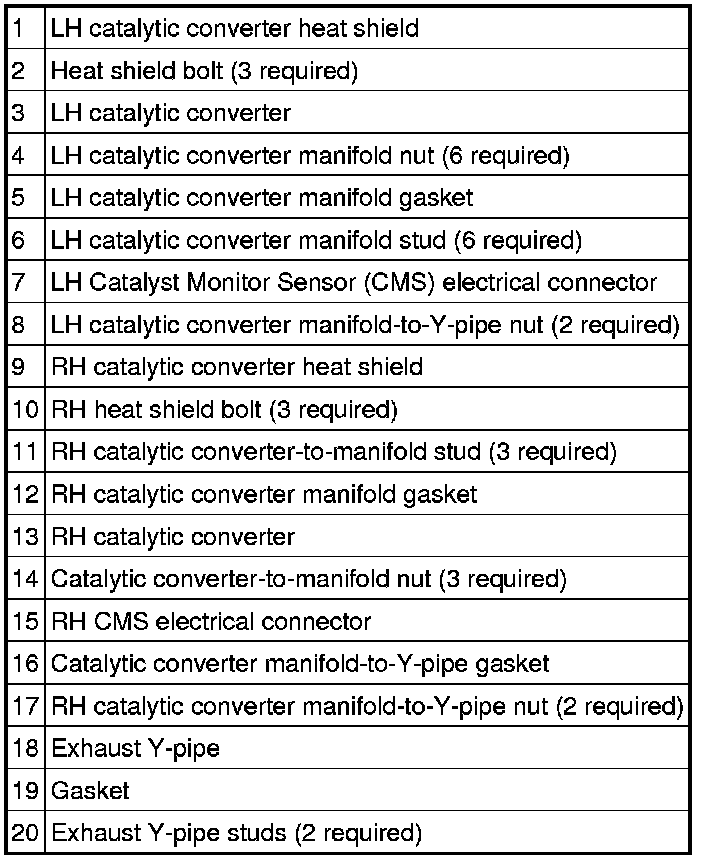

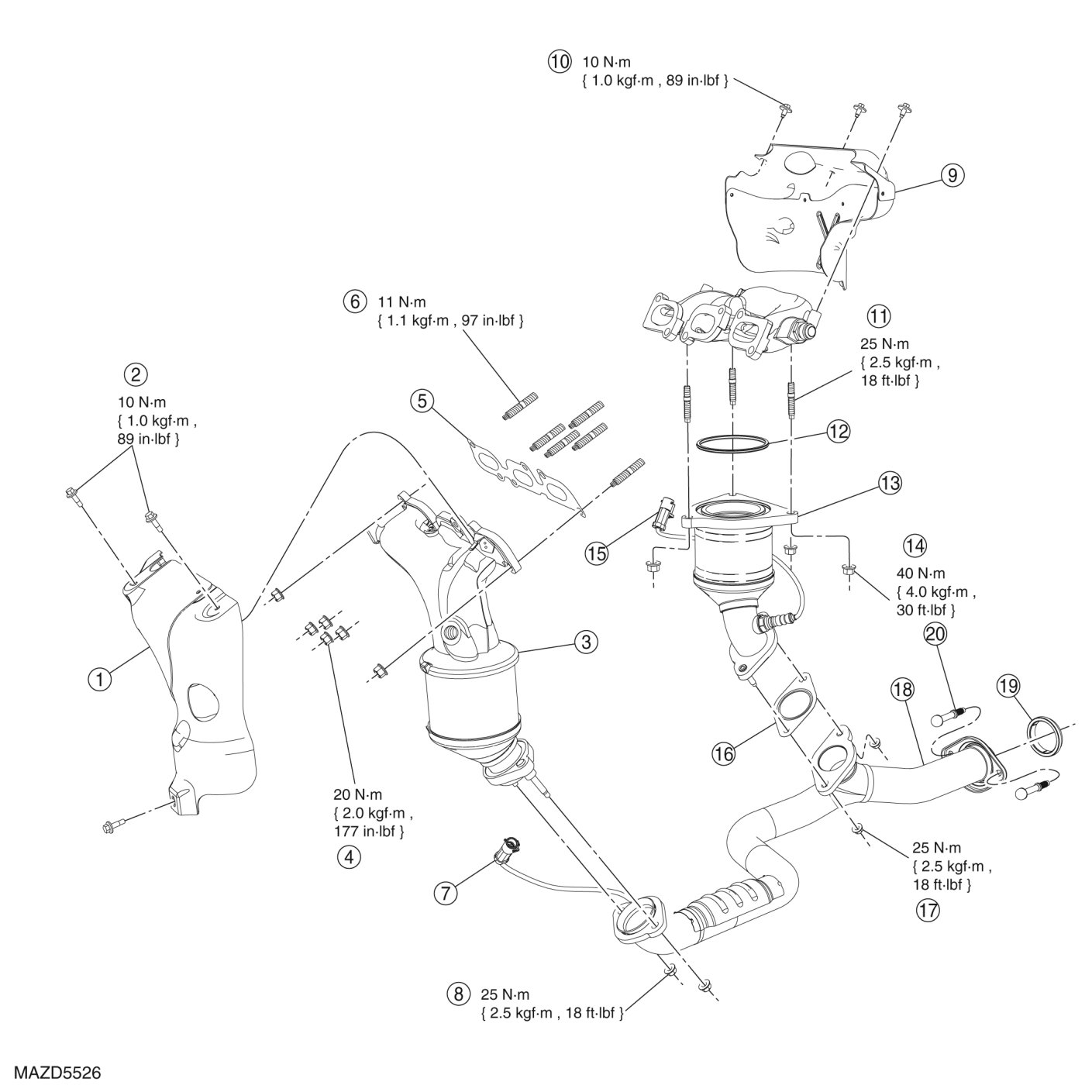

View 1 of 2

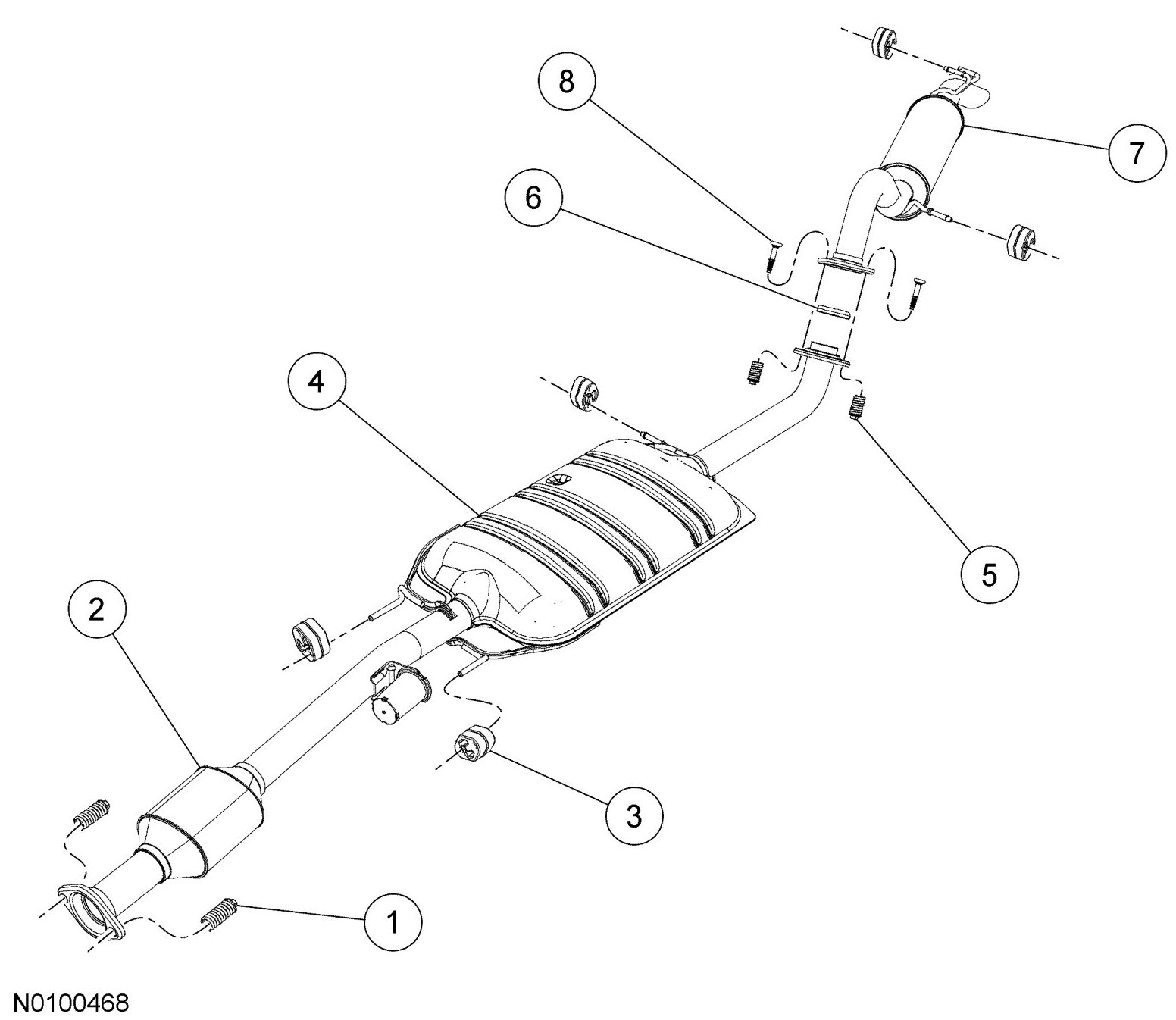

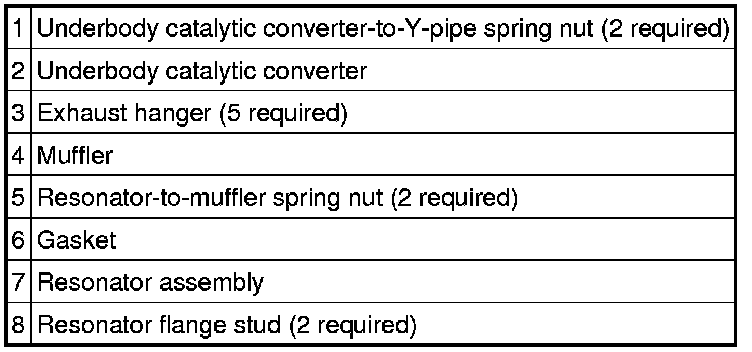

View 2 of 2










1. For additional information, see - Removal and Replacement, - Catalytic Converter Underbody Removal/Installation, - Service and Repair, - Service and Repair, - Catalytic Converter Removal/Installation - LH and - Catalytic Converter Removal/Installation - RH
