Register - Driver Side Removal/Installation

REGISTER - DRIVER SIDE REMOVAL/INSTALLATION

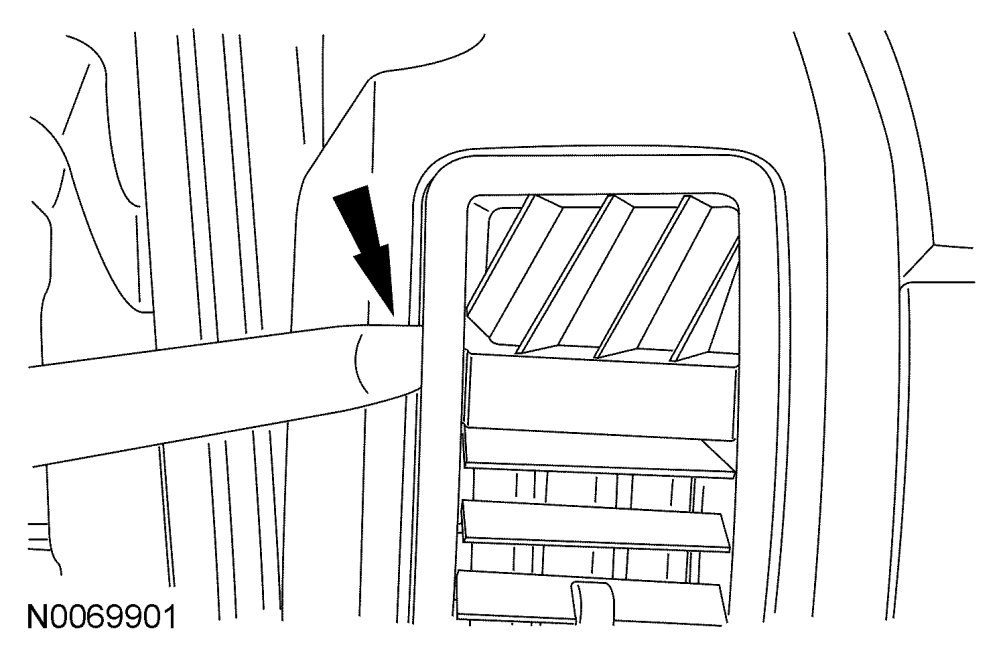

1. Using a suitable tool, gently pry to disengage the register clips from the instrument panel while working around the perimeter of the register.

CAUTION:Make sure that the tool is inserted behind the register housing, not the register trim ring. Prying on the register trim ring will damage the register assembly.

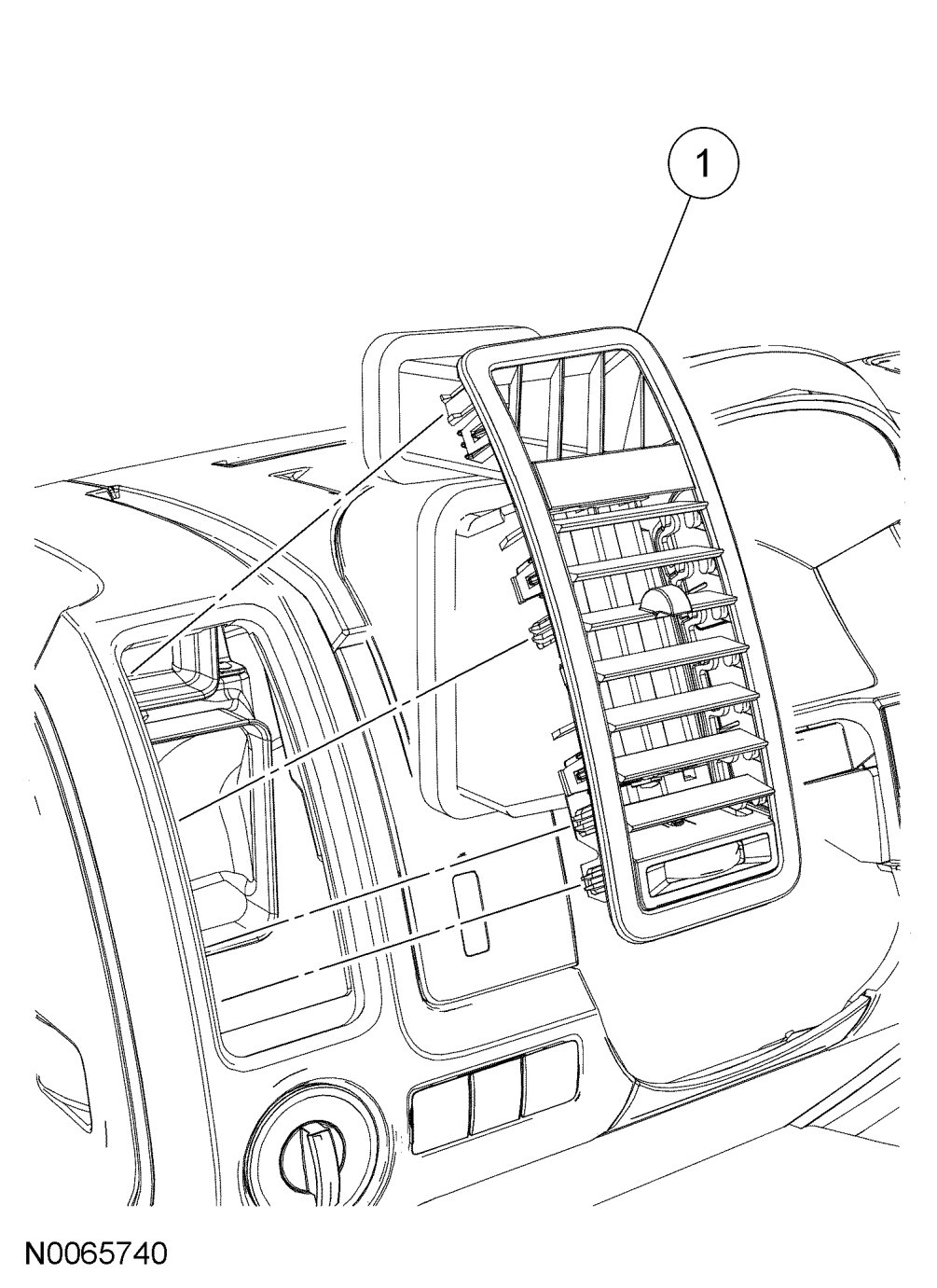

2. Remove the driver side register.

3. To install, reverse the removal procedure.
