Blower Motor Resistor: Testing and Inspection

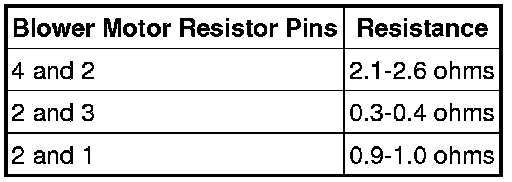

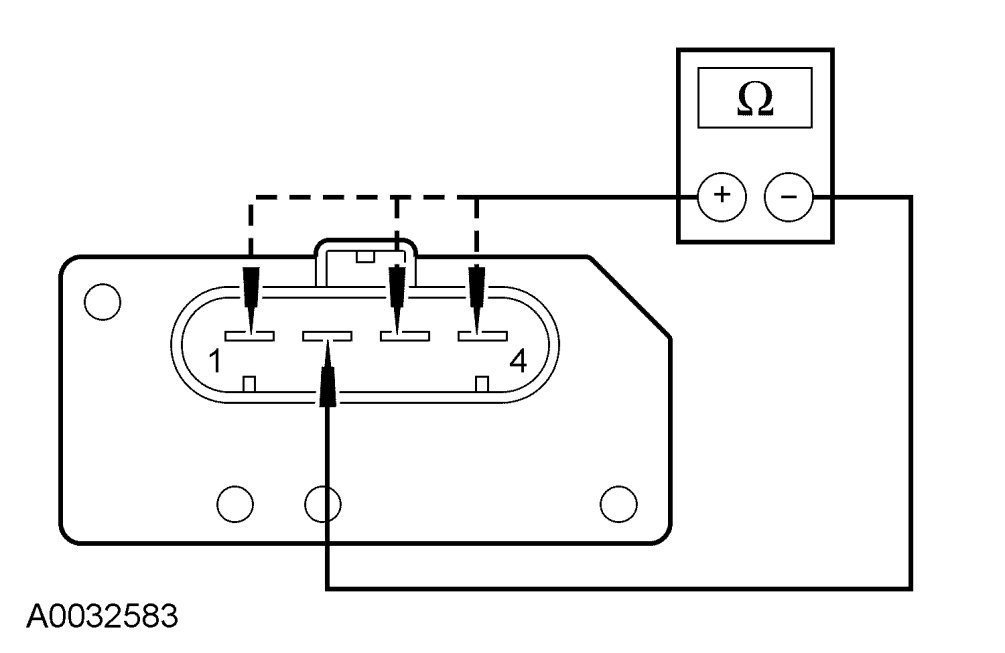

COMPONENT TEST - BLOWER MOTOR RESISTOR









All vehicles
